In today’s industrial environments Sensors play a crucial role in automation and manufacturing by providing real-time data for systems to operate and make decisions autonomously. In the realm of automation, sensors are the eyes and ears of the system. They gather information from the environment, which is then processed and used to control various operations.

Optical sensors are highly precise and versatile devices used for detecting and measuring light signals. They are already widely used in industrial robotics, security systems, quality control, and many other areas.

Optical Tracking sensors (also known as Optical Flow Sensors) are just one example for the implementation of optical Sensors in semi-autonomous and autonomous industrial systems.

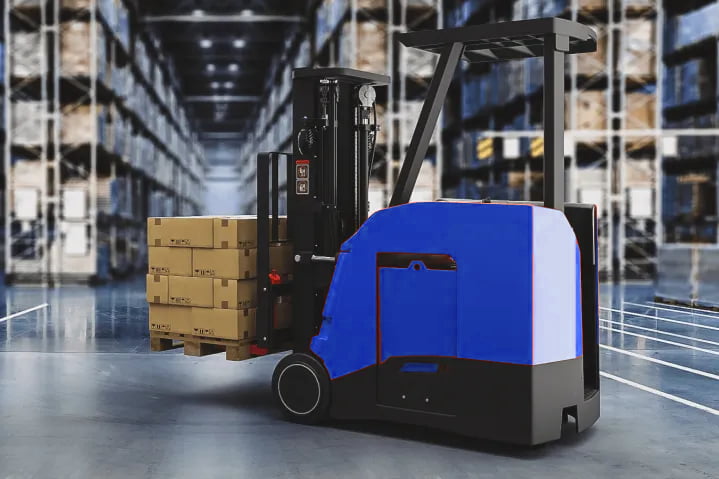

One example of Optical Tracking Sensor’s being used in an industrial automation application is in a logistics center. Here an autonomous forklift moves across various floor surfaces - from concrete to anti-slip coating. The Optical Tracking Sensor is designed into the system in a way so that it scans the floor, analysing changes in surface texture to calculate the forklift's position and movement.

This process is repeated hundreds of times per second, enabling the forklift to navigate its environment accurately. The sensor analyzes subtle changes in surface texture invisible to the human eye, calculating the exact distance and direction the forklift has moved within milliseconds.

PixArt Imaging is a supplier of CMOS-based optical sensors, offering a wide range of sensors and diverse technologies for complex man-machine interface solutions, HMI applications, and measurement and control systems. Their sensors provide precision, speed, and adaptability, making them a choice for engineers looking to enhance the capabilities of their products in logistics, manufacturing, and other industrial applications.

The sensor's ability to detect motion and surfaces stems from its core components: a high-speed image sensor, a carefully calibrated light source, and a digital signal processor. Together, these elements work to translate subtle changes in surface patterns into precise X and Y coordinates, forming the foundation of the robot's spatial awareness. This tech which was introduced to the world in optical computer mice, has evolved to become the eyes for many robots in the growing field of industrial robotics.

The key components are:

• Image sensor (usually CMOS)
• Illumination source
• Lens
• Digital signal processor

The sensor's resolution, measured in counts per inch (CPI), can range from a few hundred to over 20,000, depending on the specific application requirements.

Precision Navigation in Complex Environments

Robotic systems equipped with Optical Tracking Sensors can navigate diverse terrains with remarkable accuracy. These sensors excel in environments where traditional methods like wheel encoders may falter, such as on slippery or uneven surfaces.

For example, in warehouse settings, robots must traverse various floor types - from smooth concrete to reflective steel or aluminium. Optical sensors can maintain tracking consistency across these surfaces, enabling seamless navigation. This capability is particularly valuable in dynamic environments where the robot's path may frequently change.

The sensors' ability to detect subtle surface variations allows for real-time adjustments in movement, enhancing overall navigation precision.

Enhancing Speed and Accuracy in Robotic Operations

While optical tracking sensors are great at differentiating various materials, they also significantly improve the speed and accuracy of robotic operations. Modern sensors can track motion at speeds up to 5 m/s while maintaining error rates typically around 3-5%.

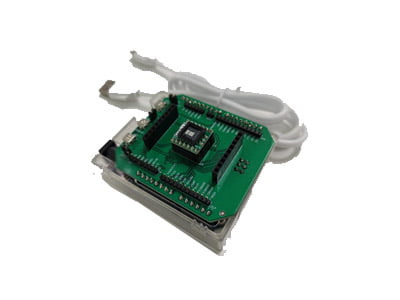

For instance, Pixart’s PAA5160E1-Q demonstrates these capabilities. This sensor can handle high-speed motion tracking of up to 2.5 m/s, making it suitable for rapid robotic movements in industrial settings. It’s typical tracking error rate of 3-5% within a working range of 10mm to 27mm ensures that even at high speeds, positional accuracy is maintained. This combination aids applications such as pick-and-place operations and material handling in automated warehouses.

Sensors with these specifications enable:

• Faster production cycles in manufacturing assembly lines
• Efficient path planning and execution in logistics robots
• Precise positioning in collaborative robots

The high report rates of these sensors, often 60 Hz or higher, allow for rapid updates to the robot's control system. This facilitates quick reactions to environmental changes or shifting task requirements, enhancing system responsiveness and efficiency.

Applications Across Industrial Sectors

In industrial automation, the balance between speed and accuracy often determines operational efficiency. The versatility of these sensors has led to their adoption in various industrial applications:

• Manufacturing: In assembly lines, robots equipped with these sensors can perform intricate tasks with high precision, even at high speeds. The sensors enable accurate positioning for welding, fastening, or quality inspection processes.
• Logistics: Warehouse robots use optical tracking for navigation and inventory management. The sensors allow for accurate tracking of robot positions relative to shelving units and other obstacles, optimizing pick-and-place operations.
• Healthcare: In surgical robotics, optical tracking sensors provide the precise motion control necessary for delicate procedures. They enable smooth, accurate movements essential for minimally invasive surgeries.
• Agriculture: Autonomous farming equipment utilizes these sensors for row tracking and precision planting, improving crop yield and reducing resource waste.

Challenges and Solutions in Sensor Implementation

While optical tracking sensors offer numerous benefits, their implementation comes with challenges. One significant hurdle is dealing with varying lighting conditions. Changes in ambient light can affect sensor performance, potentially leading to inconsistent tracking results. To address this, sensor manufacturers have developed advanced models that incorporate automatic gain control. These sensors can adjust their sensitivity in real-time, adapting to different lighting scenarios. Some sensors also utilize multiple illumination sources, allowing them to maintain consistent performance across a range of lighting conditions.

Another challenge lies in the variety of surfaces that robots may encounter. Highly reflective or extremely dark surfaces can pose difficulties for optical sensors, as they can interfere with the sensor's ability to detect surface features accurately. PixArt’s PAA5102E1-M sensor addresses this issue through its hybrid optical technology. This sensor incorporates both laser and LED illumination sources, allowing it to adapt to a wide range of surface types. On highly reflective surfaces like glossy tiles or polished metals, the sensor can utilize its laser mode for precise tracking. For darker or more diffuse surfaces, it can switch to LED illumination. This adaptability enables the sensor to maintain consistent performance across diverse environments, from glossy factory floors to rough concrete or even semi-glossy wooden surfaces. The PAA5102E1-M's ability to handle this surface variety makes it particularly suitable for warehouse robots or AGVs that must navigate through different areas of a facility, each with potentially different flooring materials.

Conclusion

Optical sensors have become an integral component in the evolution of robotic systems. Specifically Optical Tracking Sensors can address critical challenges in robot navigation and interaction, enabling machines to operate with greater precision, speed, and adaptability in complex environments.

The integration of OTS with artificial intelligence and machine learning is expected to yield increasingly sophisticated robotic systems. These enhanced systems will be capable of managing more complex tasks and collaborating more effectively with human counterparts, pushing the boundaries of what's possible in industrial automation.

Motion detection and analysis is a key technology for numerous industries such as automotive and industrial robotics. PixArt’s CMOS-based Optical Tracking sensors, serve these sectors and others including smart buildings and wearables. These sensors offer solutions for electronic engineers facing limitations in current setups, particularly in smart factory environments. Applications span office automation, printing, human-machine interfaces, navigation, and gaming controllers, driving innovation across multiple fields.

EPS Global's engineering team, with 20+ years of experience, offers technical expertise for integrating PixArt's optical tracking sensors. We provide support from concept to manufacturing, including global logistics. Our FAEs help customers efficiently implement these sensors, speeding up development.
