Optical Tracking Sensors in Warehouse Robotics

Share on
Written by: Patrick Schindzielorz 6/25/2024
OTS Sensors

Optical Tracking Sensors in Warehouse Robotics

Warehouse robotics has seen significant advancements in recent years, driven by the need for increased efficiency and accuracy in logistics and supply chain management. One of the technologies enabling these advancements are Optical Tracking Sensors (OTS) also knows as optical flow sensors, which provide precise surface tracking capabilities, and are important for the effective operation of warehouse robots. By capturing accurate dual-axis (X/Y) motion data, optical tracking sensors enable robots to navigate complex environments, avoid obstacles, and perform tasks with high precision.

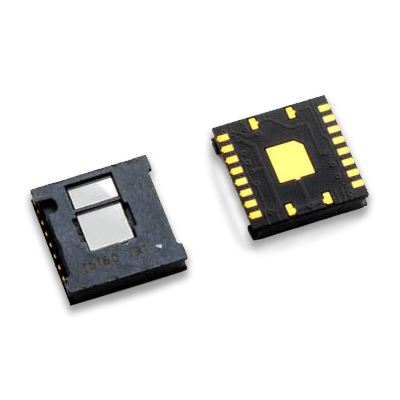

Pixart Optical Tracking SensorsOTS sensors work by emitting light and capturing the reflected signals from surfaces. This allows them to detect motion and position changes with high accuracy. The sensors can operate on hard- and soft floors. This versatility makes them ideal for warehouse robots, which need to operate in diverse and dynamic environments.

The technology behind these sensors includes advanced optics and integrated light sources, which can be either LEDs or lasers. For instance, sensors with hybrid optical technology, that incorporate both laser and LED lights, offer extended detection surface coverage and maintain resolution across different working ranges. This ensures consistent performance, even in challenging conditions.

This article will cover the implementation of Pixart's OTS sensors in warehouse robotics, focusing on enhanced navigation and obstacle avoidance, optimized route planning and efficiency, real-time inventory tracking, and safety enhancements. We will also explore specific use cases and future trends in warehouse robotics, referencing relevant sensor technologies.

Enhanced Navigation and Obstacle Avoidance

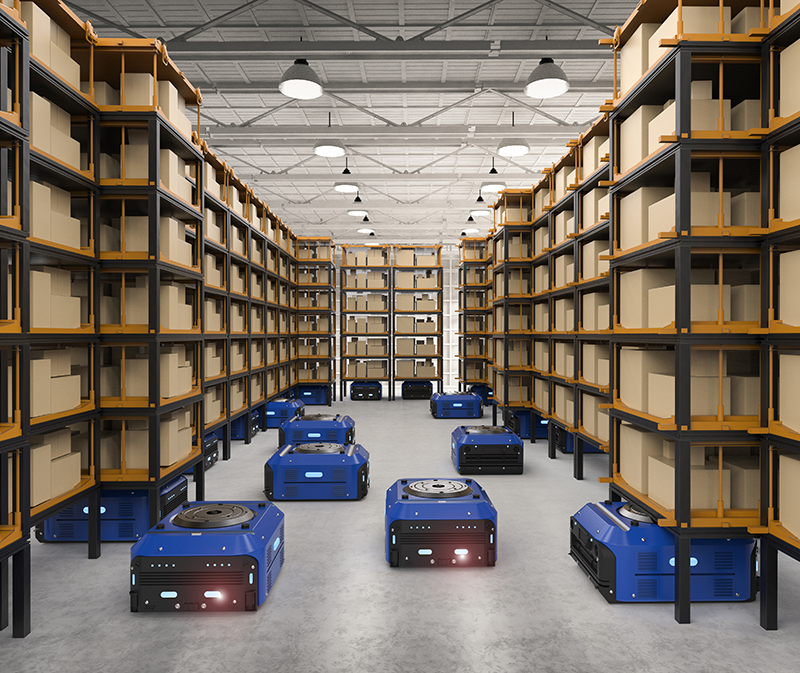

Industrial RobotsPixart's Optical Tracking Sensors (OTS), such as the PAA5160, PAT9130, and PAT9136 provides digital surface tracking through optical image technology. These sensors have a built-in unique algorithm, which processes the changes of the surface image and outputs the relative motion in x and y displacement. This again is required in order to overcome misreading errors that are highly likely to happen among varied floors surfaces. For instance, these sensors can track motion on glossy and semi-glossy materials like concrete, tiles, stainless steel and aluminum directly on the surface.

The PAA5160, with its robust tracking performance and instant recovery after crossing non-trackable surfaces, reduces downtime and increases productivity. The PAT9130 and PAT9136 offer high-speed motion tracking of up to 5m/s, allowing robots to operate efficiently in fast-paced environments. Additionally, their wide working range and compact LGA packages with integrated light sources enhance overall navigation and obstacle avoidance performance.

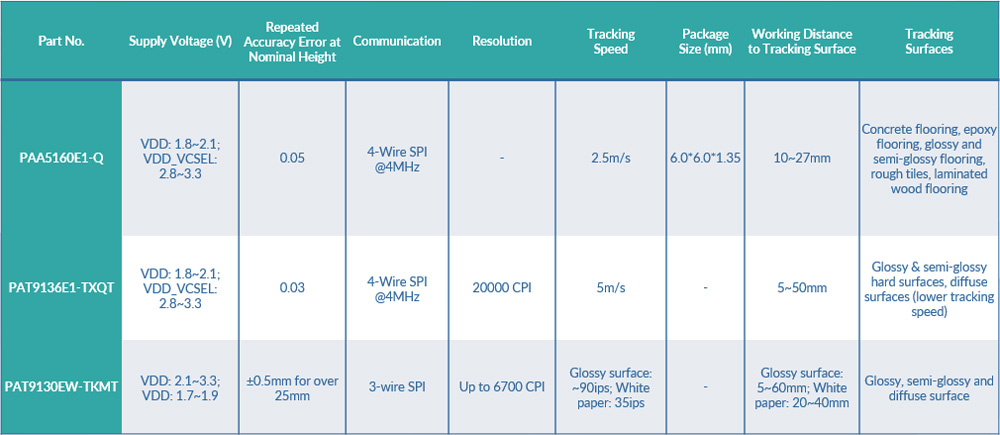

pixart technical product detail


Optimizing Route Planning and Efficiency

Effective route planning is essential for maximizing the efficiency of warehouse robots. Traditional navigation systems often rely on pre-defined paths and can struggle with dynamic adjustments, leading to inefficiencies and increased operational costs. OTS sensors provide a solution by enabling real-time, dynamic route planning based on accurate motion data.

RoutingBy embedding optical tracking sensors, warehouse robots can achieve higher levels of automation and efficiency, which we previously discussed in this article. The sensors' ability to provide precise motion data in the X and Y direction allows for more accurate and responsive navigation, which is crucial for tasks such as order picking, pallet handling, and inventory management. This dynamic route optimization not only improves productivity but also reduces wear and tear on the robots, extending their operational lifespan.

Furthermore, the seamless integration of these sensors into existing warehouse management systems enables better coordination and synchronization of multiple robots. This leads to a more streamlined workflow and minimizes the risk of collisions or bottlenecks. As a result, warehouses can handle higher volumes of goods with greater speed and accuracy, ultimately enhancing overall operational efficiency.

Real-Time Inventory Tracking and Location Mapping

Real-time inventory tracking and location mapping are crucial for efficient warehouse management.Inventory Mapping Traditional methods, such as barcode scanning and RFID, often require manual intervention and can be prone to errors, while more advanced solutions like LIDAR offer high precision but come with significant costs and complexity.

Optical surface tracking technology provides a middle ground, delivering accurate motion and position data without the need for expensive hardware. These sensors can be easily implemented into warehouse robots, enabling them to continuously monitor and update their position information in real-time.

Compared to LIDAR, optical tracking sensors offer a simpler and more affordable solution while still providing high accuracy. They show a reliable performance when navigating over various surfaces and adapting to different warehouse environments. This leads to improved inventory accuracy, faster order fulfillment, and reduced operational costs, making them an ideal choice for modern warehouses.

Safety Enhancements in Warehouse Operations

OTS - Safety EnhancementsSafety is a paramount concern in warehouse operations, especially with the increasing use of AGVs (Automated Guided Vehicles). Traditional safety systems often rely on basic proximity sensors, which can be limited in their detection range and accuracy. Optical tracking sensor technology, along with far infrared, distance, and proximity sensors, offer a more comprehensive safety solution.

By integrating optical tracking sensors, AGVs can achieve precise motion tracking and obstacle detection, ensuring safe navigation around human workers and other equipment. These sensors provide real-time data on the AGV's position and speed, allowing for immediate adjustments to avoid collisions. Additionally, far infrared sensors can detect heat signatures, enhancing the AGV's ability to recognize and respond to human presence.

Conclusion

Incorporating advanced optical tracking sensors like Pixart's PAA5160, PAT9130, and PAT9136 into warehouse robotics can revolutionize navigation, route planning, inventory tracking, and safety. These sensors offer robust tracking performance, high-speed motion tracking, and the ability to operate on various surfaces, including glossy and semi-glossy materials. By leveraging these technologies, warehouse robots can achieve higher efficiency, accuracy, and safety, paving the way for future innovations such as collaborative robots and drone-based inventory management.

EPS Global's Engineering team offers technical knowledge and expertise on all your design projects and provides a hands-on personal approach that makes a difference. Our specialized FAEs support customers in getting their designs done quickly and efficiently from concept through to manufacturing stage, with global logistics support for over 20 years. Reach out to us today to learn how EPS Global can help you integrate Pixart's optical tracking sensors into your next project, ensuring rapid development and market success.
