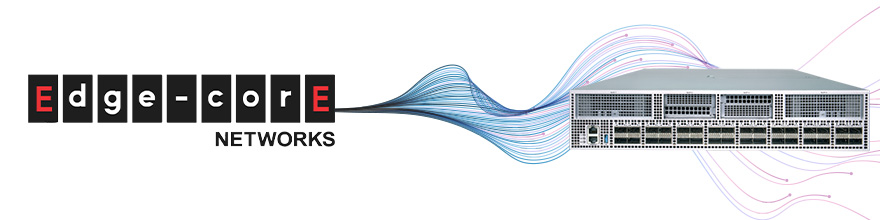

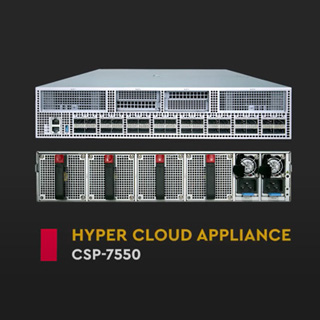

The CSP-7550 is a combination server-switch hardware appliance based on 8- or 16-core Intel Xeon processors. The switch system includes 32 QSFP28 (100 GbE) network ports based on a P4 programmable Intel Tofino chipset, all contained within a single 2RU chassis form-factor. The Intel Xeon Purley platform increases CPU capacity and performance for virtual machine consolidation and density, as well as boosting memory bandwidth (four channels).
The flexible CSP-7550 design supports 8 DDR4 DIMM slots per CPU, with local storage options including two SATA III or PCIe. The hardware platform is truly open, either install an available operating system and application soſtware that suits your needs, or build your own customized device that represents a solid future-proof investment.

Features:

• Dual processor sockets
  • Intel Xeon processor family
  • Up to 28 cores, 56 threads per socket
  • Improved performance of Intel DPDK due to Intel AVX-512
  • 8 DIMM slots per socket for DDR4 2133/2400/2666 MHz ECC LRDIMM or RDIMM
•  Flexible local storage options for optimized system performance: M.2 interface support Nvme PCIe3.0 x4 lane and SATA3.0
•  Network switch interfaces: 32 x 100GbE QSFP28 ports
• 4 open PCIe slots, 2 full-height (PCIe Gen3 x16) and 2 half-height (PCIe Gen3 x8)
• Dual redundant AC PSUs
• Remote management through a Baseboard Management Controller (BMC)

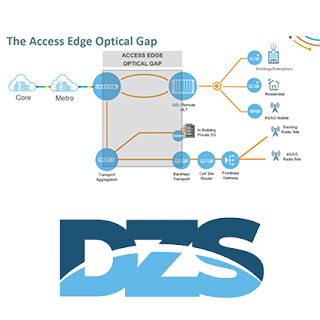

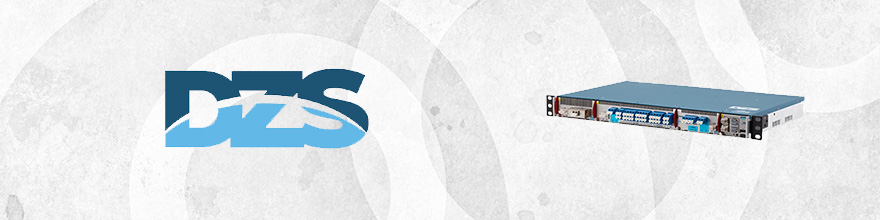

The SABER-4400 is a compact, hardened, modular platform targeting the Access Edge/Metro Edge of the network. It has four universal slots that can hold one-slot, two-slot, three-slot and four-slot (full width) sleds to address a diverse set of network edge application scenarios from Layer 0 to Layer 3. Configurable sleds include Coherent Optical Transponders (TMX), Coherent Muxponders (TMX), Regens (TMX), Amplifiers (OFA), Path Protection Modules (PPM), CDC-Flex ROADMs (RDM), Flexible Optical cross-connects (FOX) and L2/L3 switching/routing (PKT).

Features:

• Hardened, extended temperature range (ETR)
• Full 2-degree CDC-Flex Grid ROADM (can be expanded to 8-degrees), NEBS-3 compliant
• Hot-swappable one-slot, two-slot, three-slot, four-slot sleds/modules for network L0 to L3 edge applications
• Hot-swappable management module
• Multiple units can be stacked and appear as a single network element with a single management IP and redundant management hardware
• GR-3108 OSP Class 2 compliant
• Advanced timing options including integrated GPS module for GrandMaster timing

OcNOS CSR is a smart converged integrated access platform which enables Service Providers to deliver next-level business and entertainment experiences. It is a complete carrier class, Cell Site Router (CSR) product, aligning with the Telecom Infra Project’s (TIP) Disaggregated Cell Site Gateway (DCSG) technical specification.

Features:

Multi-vendor CSR hardware platform
Open Compute Project (OCP) and TIP DCSG Compliant ODM smart integrated access platforms supporting up to 360 Gbps capacity.

OcNOS as a full-featured network OS for open networking
Its features include advanced capabilities, such as extensive switching and routing protocol support, MPLS (Multiprotocol Label Switching) support, and SDN (software defined networking) integration capabilities. OcNOS features hybrid, centralized or distributed network support; scalable, modular high-performance network; and a robust data plane built on merchant silicon.

IP Infusion Advanced Network Services
Includes comprehensive network design, monitoring and technical support services.
