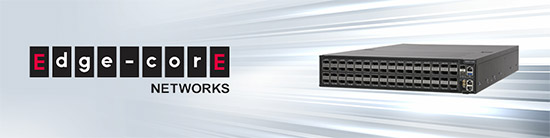

The Edgecore DCS560 is a versatile, high-capacity switch designed for data center spine applications, AI/ML clusters, and high-performance computing, featuring options for up to 320 logical ports and advanced capabilities for reduced latency and enhanced network management. It supports scalable 400G leaf connectivity, standards-based networking for AI/ML with RoCEv2, and efficient virtualization with VxLAN, catering to the needs of modern data centers.

Features:

• QSFP-DD800 switch ports, each supporting 1x 800 GbE (100G PAM4), or via breakout cables 2 x 400G GbE, 4x 200 GbE, or 8x 100 GbE.
• QSFP-DD800 switch ports also support 1 x 400 GbE (50G PAM4), 1 x 100 GbE (NRZ), and via breakout cables 2 x 200 GbE, 4 x 100 GbE, or 8 x 50 GbE.
• Up to 24 W power budget per QSFP-DD800 port.
• Incorporates Broadcom Tomahawk 5 switch series silicon.
• BMC module with serial-over-LAN support
• SyncE and PTP support with 1PPS, 10MHz, and ToD connectors on the front panel
• Contains e-fuses to protect transceivers and internal components
• Standby power mode
• 2 RU form factor

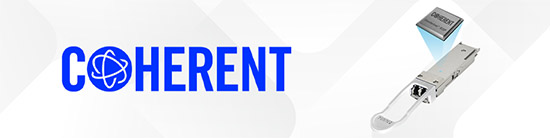

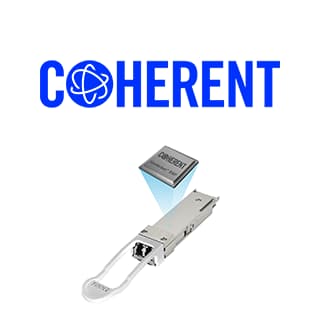

Constructed around Coherent's Steelerton DSP, the 100G ZR QSFP28-DCO transceiver fully adheres to the IEEE 802.3-2022 100GBASE-ZR standard, ensuring compatibility with other systems. The Steelerton DSP is the inaugural purpose-designed DSP for 100G ZR applications, fine-tuned for minimal power dissipation and compact size. Within the QSFP28 module, the DSP is coupled with an ultra-efficient silicon photonics optical front-end and a power-optimized tunable laser, leading to a typical module power dissipation of under 5W.
Features:

• Digital Coherent Optics module, hot-pluggable QSFP28 form factor
• IEEE 100G Ethernet (CAUI-4) or ITU-T 100G OTN (OTL4.4) compliant host interface
• 100G optical coherent interface with DP-DQPSK modulation and Staircase FEC per IEEE Std. 802.3-2022 100GBASE-ZR or ITU-T G.709.2
• Transmission reach:
  • Up to 80km unamplified (loss limited)
  • Up to 120km amplified (dispersion limited, optionally extendable to 300km)
• Full C-band tunable, 50GHz or 100GHz grid with option FlexTune⢠automatic wavelength tuning
• Case temperature range 0°C to 70°C (C-temp) or -40°C to 85°C (I-temp)
• Typical module power dissipation < 5W
• Remote digital diagnostics monitoring

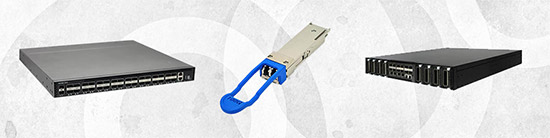

We have parts in stock, ready to ship today.

Click on the link below to request special pricing.
