Eagle X
Specifications

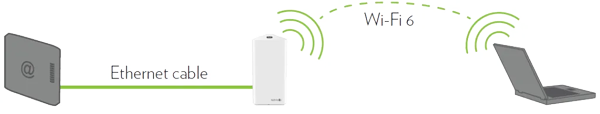

The Eagle X is an EasyMesh-compatible tri-band managed WiFi6 Extender, enabling simultaneous operation in the 2.4GHz (IEEE 802.11ax), Low-band 5GHz (IEEE 802.11ax) and high-band 5GHz (IEEE 802.11ax). The device is designed for wireless distribution of video content in a home environment. It supports Wi-Fi XL™ technology, which provides gigabit speed service delivery in a multi-user environment. Delivered with Wi-Fi XL™ technology, the Technicolor Navigate mobile app provides the user with monitoring, configuration and insight into the topology of the entire home network.
Tri-band WiFi radio
- 2x2 Wi-Fi 6 (IEEE 802.11ax) 2.4 GHz
- 2x2 Wi-Fi 6 (IEEE 802.11ax) 5 GHz Low band
- 4x4 Wi-Fi 6 (IEEE 802.11ax) 5 GHz High band
Security
- WPA2™-Enterprise
- WPA3™-Personal / WPA2™-Personal
- WPA3™ + WPA2™ mixed mode (SAE, AES)
WiFi 2.4 GHz
- Standard: do 20 dBm (100 mW EIRP)
- High Power (opcja): do 27 dBm (500 mW EIRP)
WiFi 5 GHz
- Low-band: do 23 dBm (200 mW EIRP)
- High-band: do 30 dBm (1000 mW EIRP)
Additional Features
- Wi-Fi Protected Setup (WPS™)
- Wi-Fi Multimedia (WMM®), WMM-Power Save
- Do 4 BSSID per radio
- Band steering
- WiFi EasyMesh™
- 2x2 MIMO 2.4 GHz Wi-Fi (SGi, STBC, 20/40 MHz)
