MLTG-360 - Terragraph certified distribution node (DN)
Edgecore
MLTG-360

MLTG-360 - Terragraph certified distribution node (DN)

Manufacturer: Edgecore

Datasheet: MLTG-360

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

Fixed Wireless Access

IoT Backhaul

Outdoor Wi-Fi Backhaul

Smart City

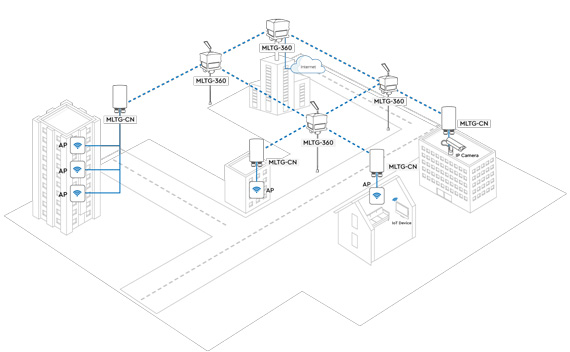

MLTG-360 is a Terragraph certified distribution node (DN). MLTG-360 has 4 radios, supporting 360º coverage. Each radio of MLTG-360 equipped with a 256-element beamforming phased array antenna, supporting up to 1.8 Gbps bi-directional throughput. In addition, MLTG-360 supports advanced mesh solution to establish a robust wireless network. Resilient mesh can be easily constructed between multiple MLTG-360 to construct the wireless network with high availability. MLTG-360 provides fiber-like connectivity at a lower cost than fiber which is ideal for fixed wireless access, backhaul of Wi-Fi, or cellular networks. MLTG-360 provides fiber-like connectivity at a lower cost than fiber which is ideal for fixed wireless access, backhaul of Wi-Fi, or cellular networks.


MLTG-360 - Terragraph certified distribution node (DN)
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/pixart/MLTG-360.jpg?ext=.jpg&maxsidesize=400

MLTG-360 is a Terragraph certified distribution node (DN). MLTG-360 has 4 radios, supporting 360º coverage. Each radio of MLTG-360 equipped with a 256-element beamforming phased array antenna, supporting up to 1.8 Gbps bi-directional throughput.

MLTG-360
New
MLTG-360
Edgecore
https://www.epsglobal.com/getmetafile/10a48348-92a3-4d28-8c95-bfba77fc5c82

Pricing Table

Technical Specification

Product Highlights:
  • 60GHZ RADIO
    • 4 x antenna tiles per radio
    • 64 antenna elements for each antenna tile
    • 90 degrees azimuth scan range: -45ยบ to 45ยบ
    • 50 degrees elevation scan range: -25ยบ to 25ยบ
  • INTERFACE
    • 1x Gigabit Ethernet Port (PoE IN)
    • 1x 10 Gigabit SFP+ port
    • 4x Gigabit Ethernet Port (PoE OUT)
    • (Only DC-in power supply can enable PoE out function)
    • 4x 60GHz Radio
    • ENVIRONMENTAL CONDITIONS
    • Operating Temperature: -20ยบC (-4ยบF) to 55ยบC (131ยบF)
    • Storage Temperature: -40ยบC (-40ยบF) to 85ยบC (185ยบF)
    • IP66 Rating
  • POWER
    • Passive PoE (Injector Optional)
    • 42.5V~59V DC terminal block
  • DIMENSIONS
    • 19.9 x 19.9 x 20.0 cm (L x W x H)
  • WEIGHT
    • 3.9 kg (8.60 lbs) (with mount)
  • RANGE
    • Up to 300m for MCS9
    • Up to 200m for MCS12
  • RF PERFORMANCE (TX)
    • EIRP 50dBm for each radio
    • (Transmit power is limited by local regulatory requirements)
  • RF PERFORMANCE (RX)
    • -66 dBm @ MCS9
    • -61 dBm @ MCS12
  • KEY FEATURES
    • Support channel 1 to channel 4 (57-66GHz)
    • Up to 1.8 Gbps throughput in both direction for each radio
    • Beam forming technology with phased array antenna for easy alignment
    • Support TDMA-MAC for dynamic bandwidth allocation
    • Support Over-the-Air (OTA) Security with AES128 encryption
    • Mesh network with IPv6 routing
    • Support QoS with 4 service classes
    • Self-recovery & optimization
