home products Enterprise Network Storage Controllers & Expansion SC4200 - 2U 24 SSD High Availability NVMe All-Flash PCIe Gen 4 Storage Controller
SC4200 - 2U 24 SSD High Availability NVMe All-Flash PCIe Gen 4 Storage Controller
Celestica
SC4200

SC4200 - 2U 24 SSD High Availability NVMe All-Flash PCIe Gen 4 Storage Controller

Manufacturer: Celestica

Datasheet: SC4200

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

SE4200 is a next-generation 2U rackmount all-flash storage expansion system for the enterprise. It supports up to 24 dual-port PCIe Gen 4 solid state drives (SSDs). The SE4200 delivers high levels of performance and system availability.

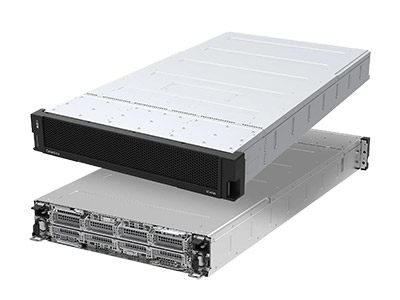

SC4200 - 2U 24 SSD High Availability NVMe All-Flash PCIe Gen 4 Storage Controller
https://www.epsglobal.com/getmetafile/8ad1814f-9c7d-46fd-8593-ec595d5712ff/SC4200?maxsidesize=400
Supporting 24 PCIe NVMe dual-port solid state drives (SSDs), its two redundant computing nodes are based on Intel® Xeon® Scalable processors. SC4200's high performance, low-latency design has the flexibility to work for converged or more malleable composable applications.
SC4200
New
SC4200
0.00
Celestica
https://www.epsglobal.com/getmetafile/b3898f5e-2355-4c7e-94c1-0c2c68a95988

Features & Benefits

  • 2U chassis, fits 19" rack
  • 2x hot-swap computing nodes
  • 24x PCIe Gen4 NVMe SSDs
  • Dual redundant power supplies
  • 4x PCIe (x16) low profile slots per node
  • Optional on-board BBUs available for node power in the event of AC power loss

Technical Specifications

Form Factor2U rackmount chassis
Storage Capacity384TB using 16TB NVMe SSDs
Power SupplyTwo 2400W Titanium 80+ efficiency CRPS units
Memory Support16x DDR4 DIMMs with 2x Barlow Pass Optane Persistent Memory
Network Connectivity2x 10GbE LAN (RJ45)
Physical Height87.6 mm (3.45")
Physical Width446.4 mm (17.58")
Physical Depth825 mm (32.5")
Operating Temperature5°C to 35°C
Operating Humidity8% to 80% RH
PCIe Slots4x PCIe Gen4 x16 slots per node
Storage Drive Support24x PCIe Gen4 NVMe SSDs
Processor SupportDual third generation Intel Xeon Scalable processors, socket LGA4189
Cooling12x 40mm x 56mm fans (6 per node)
Power Input200-240Vac, 47-63 Hz

Resources

SC4200 - 2U 24 SSD High Availability NVMe All-Flash PCIe Gen 4 Storage Controller Datasheet

-->

Manufacturer

Celestica

Celestica is a leading provider of high-performance networking switches and enterprise access solutions, designed to meet the evolving needs of modern data centers, cloud computing environments, and enterprise networks.
