SD6200 - 4U 90 HDD Dense Storage SAS-4 Expansion System
Celestica
SD6200

SD6200 - 4U 90 HDD Dense Storage SAS-4 Expansion System

Manufacturer: Celestica

Datasheet: SD6200

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

SD6200 is a next-generation 4U rackmount SAS-4 storage expansion system for the enterprise. SD6200 can be configured with up to 90 SAS HDDs or SSDs to maximize storage density and OPEX savings.

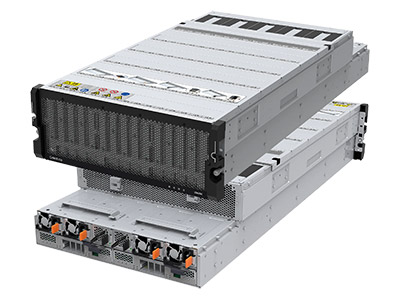

SD6200 - 4U 90 HDD Dense Storage SAS-4 Expansion System
https://www.epsglobal.com/getmetafile/a8f0bc1e-2250-44be-9fac-37c2d93b7f87/SD6200?maxsidesize=400
Designed with the latest SAS4 host interconnect, SD6200 addresses the challenges of data growth and capacity needs in the enterprise, delivering performance and reliability without compromise.
SD6200
New
SD6200
0.00
Celestica
https://www.epsglobal.com/getmetafile/b3898f5e-2355-4c7e-94c1-0c2c68a95988

Features & Benefits

  • 4U enclosure designed to fit in standard 19" wide rack
  • Cable management assembly (CMA)
  • Supports up to 90 12G SAS or 6G SATA 3.5" or 2.5" drives
  • SCSI Enclosure Services
  • 13W max drive power at 35C
  • Power control for 12G SAS drive via pin3
  • Dual redundant ESMs, hot-swappable

Technical Specifications

Form Factor4U enclosure, fits 19" wide rack
Drive SupportUp to 90 12G SAS or 6G SATA 3.5" or 2.5" drives
Power Supply1300W 80 plus Platinum PSU, 2+2 (200-240V) or 3+1 (100-240V) redundant
Drive Power13W max drive power at 35C
ConnectivityFour 24G SAS4 capable mini-SAS HD ports per ESM
Physical Height175.3 mm (6.9")
Physical Width448 mm (17.64")
Physical Depth1070 mm (42.12") w/CMA
Operating Temperature5°C to 35°C
Operating Humidity8% to 80% RH
Management PortsOne RJ45 for management, One UART via 3.5mm jack
Expansion ModuleDual redundant ESMs, hot-swappable
Cooling5x 80mm dual rotor fans, hot-pluggable from the top
Power Input100-127,200-240V AC input, auto ranging, 47~63Hz

Resources

SD6200 - 4U 90 HDD Dense Storage SAS-4 Expansion System Datasheet

-->
