home products Enterprise Network Storage Controllers & Expansion SE4200 - 2U 24 SSD NVMe All-Flash Storage PCIe Gen 4 Expansion System

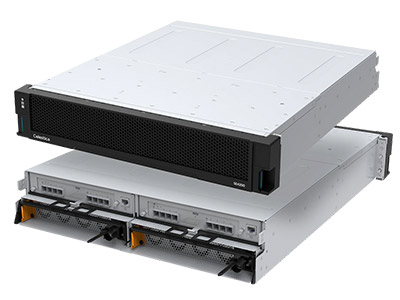

SE4200 - 2U 24 SSD NVMe All-Flash Storage PCIe Gen 4 Expansion System
Celestica
SE4200

SE4200 - 2U 24 SSD NVMe All-Flash Storage PCIe Gen 4 Expansion System

Manufacturer: Celestica

Datasheet: SE4200

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

SC4200 is a next-generation 2U rackmount all-flash storage controller for the enterprise. It is powered by two Intel® Xeon® computing nodes and supports up to 24 dual-port PCIe Gen 4 solid state drives (SSDs). The SC4200 delivers high levels of performance and system availability.

SE4200 - 2U 24 SSD NVMe All-Flash Storage PCIe Gen 4 Expansion System
https://www.epsglobal.com/getmetafile/12c135d8-5617-4a9e-84bb-6c9ed18dc706/SE4200?maxsidesize=400
Optimized for high performance and maximum capacity per enclosure, the SE4200 is next gen, purpose-built storage, ideal for enterprise workloads from Composable to Software-Defined Storage.
SE4200
New
SE4200
0.00
Celestica
https://www.epsglobal.com/getmetafile/7c599e98-e8ba-441d-b3f7-67d737451041

Features & Benefits

  • All flash array, NVMe technology
  • 2U height, rack mount
  • JBOF supports up to 24 U.2 NVMe SSDs
  • 16Gbps PCIe Gen4
  • Dual port, x2 + x2 PCIe lanes for each SSD
  • Enclosure Management
  • In-band Management Interface
  • Enclosure Health Monitor
  • Enclosure Cooling Control
  • Dual Expansion Storage Module (ESM) to support 1+1 redundant

Technical Specifications

Form Factor2U height, rack mount
Drive SupportUp to 24 U.2 NVMe SSDs
PCIe Speed16Gbps PCIe Gen4
PCIe ConnectivityDual port, x2 + x2 PCIe lanes for each SSD
Power Supply900W, 80 plus platinum, 1+1 redundant, hot swap
Physical Height87.4 mm
Physical Width446 mm
Physical Depth540 mm
Operating Temperature5°C to 40°C
Operating Humidity8% to 85% RH
Expansion ModuleDual Expansion Storage Module (ESM) to support 1+1 redundant
ManagementSupport Redfish with BMC management
CoolingFour 40mm high performance fan modules integrated in each PSU
Power Input89-264V AC input, auto ranging, 47~63Hz

Resources

SE4200 - 2U 24 SSD NVMe All-Flash Storage PCIe Gen 4 Expansion System Datasheet

-->
