32-Port, 25/100GE Open Aggregation Router
32-Port, 25/100GE Open Aggregation Router
32-Port, 25/100GE Open Aggregation Router
S9600-32X

32-Port, 25/100GE Open Aggregation Router

Manufacturer: ufiSpace

Datasheet: S9600-32X

Delivers to:

Delivers Worldwide.

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

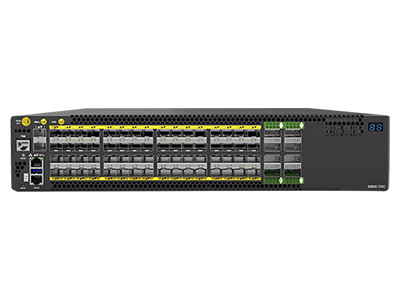

The UfiSpace S9600-32X Open Aggregation Router, is a multi-function, disaggregated white box aggregation routing platform that is equipped with Broadcom Qumran2c merchant silicon and Intel Skylake processor. It features 32 high speed 100GE ports with an additional 4x25GE ports that is a break out of port #0.

The S9600-32X provides 4GB deep buffer, a switching capacity of up to 2.4Tbs, and fully supports SyncE and IEEE 1588v2 timing profiles. Specializing in 5G Time Sensitive Networking (TSN) applications, the S9600-32X complies to the IEEE 802.1CM and can act as an Edge Grand Master (GM) clock. Furthermore, it can provide Class C timing accuracy using UfiSpace's in-house designed 5G timing module.

The S9600-32X platform can enable multiple application architectures required for high traffic loading in a 5G mobile Ethernet network. Due to its versatility, the S9600-32X can be positioned in different parts of the network to perform aggregation, such as in the backhaul to aggregate BBU pooling or even as a Broadband Network Gateway (BNG) within the central office.

32-Port, 25/100GE Open Aggregation Router
https://www.epsglobal.com/getmetafile/a5850478-528d-48e2-9eef-7f4ea069d2a9/S9600-32X-1?maxsidesize=400

The UfiSpace S9600-32X Open Aggregation Router, is a multi-function, disaggregated white box aggregation routing platform that is equipped with Broadcom Qumran2c merchant silicon and Intel Skylake processor. It features 32 high speed 100GE ports with an additional 4x25GE ports that is a break out of port #0.

S9600-32X
New
S9600-32X
ufiSpace
https://www.epsglobal.com/getmetafile/d12990ae-2a23-456e-8f8c-1604875b0cc9

Pricing Table

Technical Specification

Ports:
32
Data Rate:
100G
Predominant Port Type:
40G/100G QSFP28
Features:
  • Multi-function Aggregation Router
  • Supports SyncE and IEEE 1588
  • 32 x 40GE/100GE QSFP28 ports
  • 4 x 1GE/10GE/25GE SFP28 ports (break out from Port 0)
  • 1 x RJ45 serial console port
  • 1 x Micro USB serial console port
  • 1 x 1000 Base-T Ethernet port for Out-of-Band management
  • 1 x USB 3.0 Type-A general purpose port
