home products Service Provider Aggregation Routers S9600-72XC 72-Port, 25/100GE Open Aggregation Router
S9600-72XC 72-Port, 25/100GE Open Aggregation Router
ufiSpace
S9600-72XC

S9600-72XC 72-Port, 25/100GE Open Aggregation Router

Manufacturer: ufiSpace

Datasheet: S9600-72XC

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

The S9600-72XC open aggregation router is a multi-function, disaggregated white box aggregation routing platform with an external TCAM option.

It is equipped with Broadcom's Qumran2c merchant silicon and Intel Skylake processor for high capacity routing, better power efficiencies, and more buffering within a compact 2RU router.

It features 64x25GE and 8x100GE high-speed ports with a switching capacity of up to 2.4Tbs.

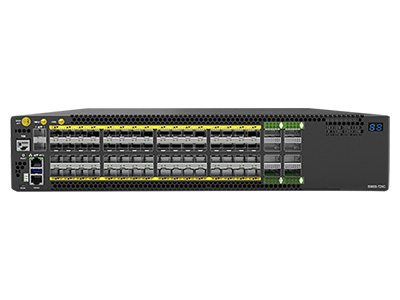

S9600-72XC 72-Port, 25/100GE Open Aggregation Router
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/UfiSpace/S9600-72XC.jpg?ext=.jpg&maxsidesize=400
The S9600-72XC is a high-capacity, power-efficient, 2RU router with Broadcom's Qumran2c silicon, Intel Skylake processor, 64x25GE and 8x100GE ports, and a 2.4Tbs switching capacity.
S9600-72XC
New
S9600-72XC
0.00
ufiSpace
https://www.epsglobal.com/getmetafile/d12990ae-2a23-456e-8f8c-1604875b0cc9

Features & Benefits

  • High density, Multi-function Aggregation Router with TCAM Option
  • Supports SyncE and IEEE 1588
  • 64 x 25GE SFP28 ports
  • 8 x 100GE QSFP28 ports
  • 2 x 10GE SFP+ management ports
  • 1 x RJ45 serial console port

Technical Specifications

ASICBroadcom Qumran2c BCM88820 Broadcom OP2 BCM16K Optional
Chassis2RU, 436W x 87.7H x 609.6D mm (17.17"x3.45"x24") Weight: 23.12 kg (50.86 lbs)
Memory2x16GB DDR4 R-DIMM with ECC
Non-Operating Spec.Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 5% to 95% (RH), non-condensing
Operating Spec.0°C to 45°C (32°F to 113°F) Operating humidity: 5% to 85% (RH), non-condensing
Power supplyAC input: 200 to 240V DC input: -40 to -75V Typical power: 234 Watts (no transceiver)
ProcessorIntel Skylake-D 8 Core @ 1.9GHz
Redundancy1+1 hot swappable power units 3+1 hot swappable fan units
Storage1x128GB SSD
-->

Manufacturer

ufiSpace

UfiSpace provides end-to-end 5G networking solutions for telecommunication companies, cloud service providers and data centers. Their passion and dedication towards customer service and engineering excellence has brought UfiSpace to the forefront of 5G technology innovation.
