CW Tunable Laser – Butterfly Package
Coherent
S7500 Tunable Lasers

CW Tunable Laser – Butterfly Package

Manufacturer: Coherent

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

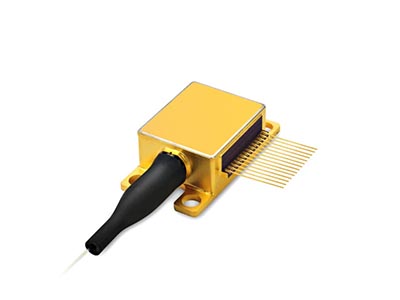

The II-VI S7500 tunable laser incorporates a monolithic InP chip that integrates a tunable MG-Y laser with a semiconductor optical amplifier (SOA). The MG-Y (Modulated Grating Y-branch) laser is an electronically tuned device that can address any wavelength in the C-band. Since no mechanical or thermal adjustments are necessary, channel switching is very fast. The SOA facilitates flexible control of the output power and acts as a shutter when reverse biased, enabling dark tuning between channels. The devices are packaged into a compact, low-profile hermetically sealed package, with an internal optical isolator and a wavelength locker.

CW Tunable Laser – Butterfly Package
https://www.epsglobal.com/getmetafile/5b3b84ed-8b5e-4b1c-a3cf-6365eca844b3/s7500-tunable-lasers?maxsidesize=400

The II-VI S7500 tunable laser incorporates a monolithic InP chip that integrates a tunable MG-Y laser with a semiconductor optical amplifier (SOA).

S7500 Tunable Lasers
New
S7500 Tunable Lasers
0.00
Coherent
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c

Pricing Table

Technical Specification

Product Highlights:
  • Full C-band tuning (89 channels at 50 GHz spacing)
  • High, adjustable output power, from 9 to 13 dBm
  • Low power dissipation, typically < 2.2 W at 75°C
  • High side-mode suppression ratio > 40 dB
  • Dark tuning by reverse biasing the integrated optical amplifier
  • Compact, low-profile, hermetic laser package with internal optical isolator
  • Integral wavelength locker, allowing stabilization to within ±2.5 GHz over life, compatible with 50 GHz ITU grid spacing
  • Polarization maintaining fiber pigtail
Application:
  • Sensor systems
  • Test and measurement
