70 GHz Dual Window Photodetector

Product Detail

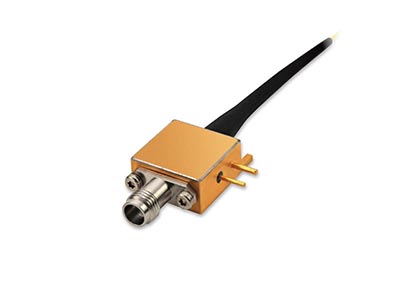

The XPDV3x20R comprises an optimized 70GHz dual window waveguide-integrated photodiode, which shows an extremely flat frequency response, both in power and in phase. II-VI‘s on-chip integrated bias network with an optimized RF-design ensures an undisturbed frequency response from DC to the 3dB cut-off frequency and saves costs for an external bias-tee. The hermetic module is especially designed for use in optical windows at 1310nm and 1550nm and optimal RF-performance. The pulse response reveals virtually no ringing. It is best suited for Test & Measurement or Microwave photonics applications up to 60GHz. A further advantage of the waveguide structure is the unbeatable high power behavior. The photodetector shows a linear response up to an optical input power of 10dBm. An output voltage swing of more than 0.5Vpp can be achieved for short pulses, without any degradation of the pulse response.
