Uncooled 980 nm pump laser module – 8-pin Mini-DIL
Coherent
LU96Z-series

Uncooled 980 nm pump laser module – 8-pin Mini-DIL

Manufacturer: Coherent

Datasheet: LU96Z-series

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

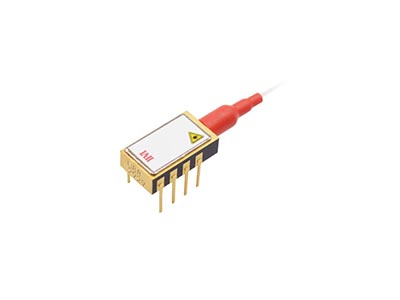

The LU96Z-series uncooled pump laser module in an 8-pin mini-DIL package is II-VI’s third-generation uncooled pump module providing low power consumption for highly reliable metro, cross-connect, SFF single and multi-channel amplifier designs plus high bit-rate, per-channel amplification. The LU96Z-series is designed for uncooled operation at high temperature and power levels. Qualification of the enhanced G08 chip ensures high reliability even at high operating power, 75°C. External Fiber Bragg Grating (FBG) stabilization provides excellent wavelength and power stability over the entire operating temperature range.

Uncooled 980 nm pump laser module – 8-pin Mini-DIL
https://www.epsglobal.com/getmetafile/ef9ce75d-c3bb-49b8-8ada-cdc1c1933fdb/lu96z-series?maxsidesize=400

The LU96Z-series uncooled pump laser module in an 8-pin mini-DIL package is II-VI’s third-generation uncooled pump module providing low power consumption for highly reliable metro, cross-connect, SFF single and multi-channel amplifier designs plus high bit-rate, per-channel amplification.

LU96Z-series
New
LU96Z-series
0.00
Coherent
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c

Pricing Table

Technical Specification

Product Highlights:
  • Up to 500mW kink-free power over full operating temperature range
  • Operating temperature range from -5°C to +75°C
  • Polarization maintaining (PM) fiber
  • Low power dissipation
  • Small form factor mini-DIL package
  • Wavelength stabilized by fiber Bragg grating over entire operating range
  • Centre wavelength at 974 and 976nm
  • Telcordia GR-468-CORE compliant
  • RoHS compliant
Application:
  • Low noise EDFA requiring higher optical power with low power consumption and small form-factor package
  • Single or multi-stage EDFA applications including Single-channel and DWDM designs
