LAN7430 - PCIe 3.1 at 2.5GT/s  to 10/100/1000 Ethernet Bridge
Microchip
LAN7430

LAN7430 - PCIe 3.1 at 2.5GT/s to 10/100/1000 Ethernet Bridge

Manufacturer: Microchip

Datasheet: LAN7430

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

Status: In Production
Microchip's LAN7430 is a PCIe 3.1 (at 2.5GT/s) to Gigabit Ethernet bridge, providing an ultra-high-performance and cost-effective PCIe to Ethernet connectivity solution. LAN7430 contains an integrated Ethernet PHY, PCIe PHY, PCIe endpoint controller, Ethernet MAC, Integrated OTP, JTAG TAP and EEPROM controller. The device supports 10BASE-T, 100BASE-TX and 1000BASE-T Ethernet with auto-negotiation, auto-polarity correction, HP Auto-MDIX† support and is compliant with IEEE 802.3/802.3u/802.3ab standards.

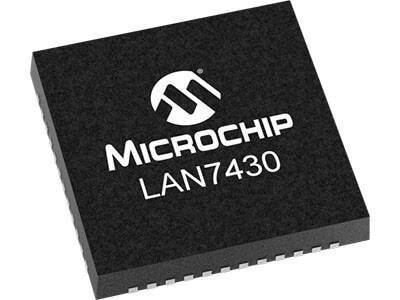

LAN7430 - PCIe 3.1 at 2.5GT/s to 10/100/1000 Ethernet Bridge
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/LAN7430.jpg?ext=.jpg&maxsidesize=400

Microchip's LAN7430 is a PCIe 3.1 (at 2.5GT/s) to Gigabit Ethernet bridge, providing an ultra-high-performance and cost-effective PCIe to Ethernet connectivity solution.

LAN7430
New
LAN7430
0.00
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100/1000Mbps
PHY:
Yes
Downstream Ethernet/USB Ports:
Ethernet x1
Interface:
PCIe 3.1 at 2.5GT/s
Status:
In Production
Automotive Grade:
No
MAC:
Yes
Interrupt Pin:
No
LEDs:
4
Op. Voltage (V):
3.3
Wake-on-LAN:
Yes
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
48/VQFN
