LAN7500 - USB 2.0 to 10/100/1000 Ethernet Bridge
LAN7500

LAN7500 - USB 2.0 to 10/100/1000 Ethernet Bridge

Manufacturer: Microchip

Datasheet: LAN7500

Delivers to:

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

Status: In Production
Microchip's LAN7500 is a Hi-Speed USB 2.0 to 10/100/1000 Gigabit Ethernet controller providing a high-performance and cost-effective USB to Ethernet connectivity solution. The LAN7500 contains an integrated 10/100/1000 Gigabit Ethernet PHY, USB PHY, Hi-Speed USB 2.0 device controller, 10/100/1000 Gigabit Ethernet MAC, TAP controller, EEPROM controller and a FIFO controller with a total of 32KB internal packet buffering. The device supports 10BASE-T, 100BASE-TX and 1000BASE-T Ethernet and implements Control, Interrupt, Bulk-in and Bulk-out USB endpoints. The Ethernet controller supports auto-negotiation, auto-polarity correction, HP Auto-MDIX† support and is compliant with IEEE 802.3/802.3u/802.3ab standards.

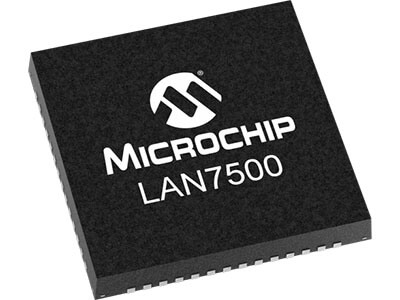

LAN7500 - USB 2.0 to 10/100/1000 Ethernet Bridge
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/LAN7500.jpg?ext=.jpg&maxsidesize=400

Microchip's LAN7500 is a Hi-Speed USB 2.0 to 10/100/1000 Gigabit Ethernet controller providing a high-performance and cost-effective USB to Ethernet connectivity solution.

LAN7500
New
LAN7500
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100/1000Mbps
PHY:
Yes
Downstream Ethernet/USB Ports:
Ethernet x1
Interface:
USB2.0
Status:
In Production
Automotive Grade:
No
MAC:
Yes
Interrupt Pin:
No
LEDs:
5
Op. Voltage (V):
3.3
I/O Pins:
0
Wake-on-LAN:
Yes
EEE:
No
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
56/VQFN
