home products Semiconductors Ethernet & PoE Ethernet Bridges LAN89530 - USB 2.0 10/100 Ethernet controller for Automotive applications
LAN89530 - USB 2.0 10/100 Ethernet controller for Automotive applications
Microchip
LAN89530

LAN89530 - USB 2.0 10/100 Ethernet controller for Automotive applications

Manufacturer: Microchip

Datasheet: LAN89530

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

Status: In Production Consider: LAN89730
Microchip's LAN89530 was specifically designed to provide a high performance, low-cost USB to 10/100 Ethernet connectivity solution with a Hi-Speed USB interface for Automotive applicaitons. The internal USB device controller is USB 2.0-compliant and implements Control, Interrupt and Bulk-in and Bulk-out USB endpoints. Microchip's UniClock™ technology simplifies the clocking scheme and reduces system BOM costs by using a single 25 MHz crystal for both USB and Ethernet connectivity - without the need for additional components when adding USB hubs. Applications well-suited for the LAN89530 include a diagnostic interface for dealership service bay, a fast software download interface with an OBD connector and an in-vehicle engineering development interface, among others. The LAN89530 also supports auto-negotiation, auto-polarity correction, HP Auto-MDIX and is compliant with IEEE802.3 and 802.3u standards. An external MII provides support for an external PHY which enables HomePNA® or HomePlug® functionality. Multiple power management features are provided, including various low power modes, as well as Magic Packet, Wake-on-LAN and Link Status Change wake events. These events can be programmed to initiate a remote USB wakeup. A PCI-like PME wake is also supported when the USB host controller is disabled.

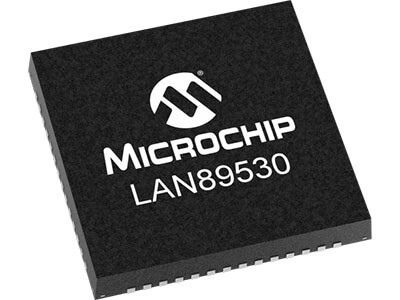

LAN89530 - USB 2.0 10/100 Ethernet controller for Automotive applications
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/LAN89530.jpg?ext=.jpg&maxsidesize=400

Microchip's LAN89530 was specifically designed to provide a high performance, low-cost USB to 10/100 Ethernet connectivity solution with a Hi-Speed USB interface for Automotive applicaitons.

LAN89530
New
LAN89530
0.00
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
PHY:
Yes
Downstream Ethernet/USB Ports:
Ethernet x1
Interface:
USB2.0
Status:
In Production Consider: LAN89730
Automotive Grade:
Yes
MAC:
Yes
Interrupt Pin:
Yes
LEDs:
3
Op. Voltage (V):
3.3
I/O Pins:
0
Wake-on-LAN:
No
EEE:
No
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
56/VQFN
