KSZ8441 - 10/100 Base-T/TX Ethernet Controller with IEEE1588v2 Support
Microchip
KSZ8441

KSZ8441 - 10/100 Base-T/TX Ethernet Controller with IEEE1588v2 Support

Manufacturer: Microchip

Datasheet: KSZ8441

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

Status: In Production
The KSZ8441 product is an IEEE 1588v2-enabled Ethernet controller device with an internal MAC and PHY that provides integrated communication and synchronization for a range of industrial Ethernet applications. The KSZ8441 product enables end-point connection in a centralized topology. A flexible 8-bit or 16-bit interface is provided for interfacing to an external host processor. The KSZ8441 devices incorporate the IEEE 1588v2 protocol. Sub-microsecond synchronization is available via the use of hardware-based time stamping and transparent clocks making it the ideal solution for time-synchronized layer 2 communication in critical industrial applications. Extensive general purpose input/output (GPIO) capabilities are available to use with the IEEE 1588v2 PTP to efficiently and accurately interface to locally-connected devices. Complementing the industry’s most integrated IEEE 1588v2 device is a precision timing protocol (PTP) v2 software stack that has been pre-qualified with the KSZ84xx product family. The PTP stack has been optimized around the KSZ84xx chip architecture, and is available in source code format along with Microchip's chip driver. The KSZ8441 is built upon Microchip's industry-leading Ethernet technology, with features designed-to-offload host processing and streamline overall design, including: • 1 integrated 10/100BASE-TX PHY transceiver, featuring the industry’s lowest power consumption • Flexible management options that support common standard interfaces • A robust assortment of power management features including energy-efficient Ethernet (EEE) have been designed in to satisfy energy-efficient environments Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

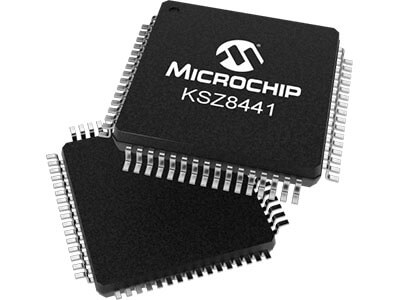

KSZ8441 - 10/100 Base-T/TX Ethernet Controller with IEEE1588v2 Support
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/KSZ8441.jpg?ext=.jpg&maxsidesize=400

The KSZ8441 product is an IEEE 1588v2-enabled Ethernet controller device with an internal MAC and PHY that provides integrated communication and synchronization for a range of industrial Ethernet applications.

KSZ8441
New
KSZ8441
0.00
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps / FX
Interface:
8-bit or 16-bit
PHY:
Yes
TX/RX RAM Buffer(Bytes):
12KB(RX) 6KB(TX)
Status:
In Production
MAC:
Yes
Automotive Grade:
No
Fiber Support:
Yes
Interrupt Pin:
1
IEEE 1588:
Yes
WOL:
Yes
EEE:
Yes
LEDs:
2
Cable Diag:
Yes
Op. Voltage (V):
0
Vdd I/O (V):
1.8/2.5/3.3
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
64/LQFP
