KSZ8692 - 10/100 Base-T/TX Ethernet SoC Controller with ARM9 Core
KSZ8692

KSZ8692 - 10/100 Base-T/TX Ethernet SoC Controller with ARM9 Core

Manufacturer: Microchip

Datasheet: KSZ8692

Delivers to:

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

Status: Mature Product
The KSZ8692PB, KSZ8692PB-S is a highly integrated System-on-Chip (SoC) containing an ARM™ 922T 32-bit processor and a rich set of peripherals to address the cost-sensitive, high-performance needs of a wide variety of high bandwidth networking and communications applications. The KSZ9692PB-S is a small package version of KSZ9692PB and it supports 16 bit DDR data width. Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires aStatus: Mature Product   The KSZ8692PB, KSZ8692PB-S is a highly integrated System-on-Chip (SoC) containing an ARM™ 922T 32-bit processor and a rich set of peripherals to address the cost-sensitive, high-performance needs of a wide variety of high bandwidth networking and communications applications.The KSZ9692PB-S is a small package version of KSZ9692PB and it supports 16 bit DDR data width. Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account. myMicrochip account.

KSZ8692 - 10/100 Base-T/TX Ethernet SoC Controller with ARM9 Core

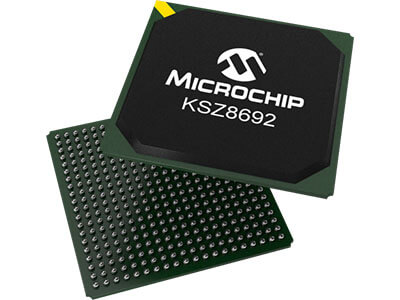

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/KSZ8692.jpg?ext=.jpg&maxsidesize=400

The KSZ8692PB, KSZ8692PB-S is a highly integrated System-on-Chip (SoC) containing an ARM™ 922T 32-bit processor and a rich set of peripherals to address the cost-sensitive, high-performance needs of a wide variety of high bandwidth networking and communications applications.

KSZ8692
New
KSZ8692
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
Interface:
8-bit or 16-bit
PHY:
No
TX/RX RAM Buffer(Bytes):
8k
Status:
Mature Product
MAC:
Yes
Automotive Grade:
No
Fiber Support:
No
Interrupt Pin:
0
IEEE 1588:
No
WOL:
Yes
LEDs:
0
Op. Voltage (V):
0
Vdd I/O (V):
3.3
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
400/PBGA
