LAN89730 - USB to 10/100 Base-T/TX Ethernet Bridge for Automotive Applications
LAN89730

LAN89730 - USB to 10/100 Base-T/TX Ethernet Bridge for Automotive Applications

Manufacturer: Microchip

Datasheet: LAN89730

Delivers to:

Delivers Worldwide.

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

Status: In Production Consider: LAN89530
Microchip's LAN89730 was specifically designed to provide a high-performance, low-cost USB to 10/100 Ethernet connectivity solution with a Hi-Speed Inter-Chip (HSIC) interface for automotive applications. Many high-performance mobile processor include an HSIC interface to reduce pin count and power, and often do not include an Ethernet interface. The LAN89730 provides a convenient way to connect such processors to an Ethernet network. Taking advantage of the broad availability of existing USB drivers and software, Microchip's proprietary HSIC technology incorporates a 2-pin digital bus that enables the use of USB as a low-power, chip-to-chip interconnect at speeds up to 480 Mbps. The internal device controller is USB 2.0-compliant and the HSIC interface is HSIC USB Electrical Specification Revision 1.0-compliant. The device implements Control, Interrupt and Bulk-in and Bulk-out USB endpoints. Microchip's UniClock™ technology simplifies the clocking scheme and reduces system BOM costs by using a single 25MHz crystal for both USB and Ethernet connectivity – without the need for additional components when adding USB hubs. Applications well-suited for the LAN89730 include remote antenna modules and providing Ethernet connections to micro controllers that lack an Ethernet interface. The LAN89730 supports auto-negotiation, auto-polarity correction, HP Auto-MDIX† and is compliant with IEEE802.3 and 802.3u standards. An external MII provides support for an external PHY which enables connection to several physical layers. Multiple power management features are provided, including various low power modes, as well as Magic Packet, Wake-on-LAN and Link Status Change wake events. These events can be programmed to initiate a remote USB wakeup. A PCI-like PME wake is also supported when the USB host controller is disabled. Additionally, Microchip offers its complimentary and confidential LANCheck® online design review services to customers who select our products for their application design-in. †HP Auto-MDIX eliminates the need for special "crossover" cables when connecting LAN devices together. *The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

LAN89730 - USB to 10/100 Base-T/TX Ethernet Bridge for Automotive Applications
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/LAN89730.jpg?ext=.jpg&maxsidesize=400

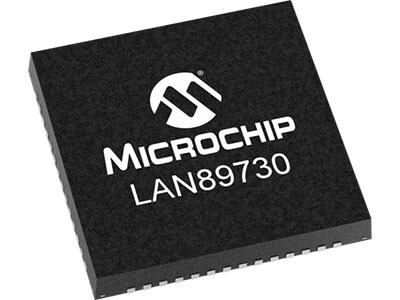

Microchip's LAN89730 was specifically designed to provide a high-performance, low-cost USB to 10/100 Ethernet connectivity solution with a Hi-Speed Inter-Chip (HSIC) interface for automotive applications.

LAN89730
New
LAN89730
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
Interface:
HSIC
PHY:
Yes
TX/RX RAM Buffer(Bytes):
28k
Status:
In Production Consider: LAN89530
MAC:
Yes
Automotive Grade:
Yes
Fiber Support:
No
Interrupt Pin:
1
IEEE 1588:
No
WOL:
Yes
EEE:
No
LEDs:
3
Cable Diag:
No
Op. Voltage (V):
0
Vdd I/O (V):
3.3
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
56/VQFN
