Product Detail

Status: Mature Product Consider: LAN9218
The LAN9117 is a full-featured, single-chip 10/100 Ethernet controller designed for embedded applications where performance, flexibility, ease of integration and system cost control are required. The LAN9117 has been specifically architected to provide the highest performance possible for any 16-bit application. The LAN9117 is fully IEEE 802.3 10BASE-T and 802.3u 100BASE-TX compliant. The LAN9117 includes an integrated Ethernet MAC and PHY with a high-performance SRAM-like slave interface. The simple, yet highly functional host bus interface provides a glue-less connection to most common 16-bit microprocessors and microcontrollers as well as 32-bit microprocessors exposing a 16-bit external bus. The LAN9117 includes large transmit and receive data FIFOs with a high-speed host bus interface to accommodate high bandwidth, high-latency applications. In addition, the LAN9117 memory buffer architecture allows the most efficient use of memory resources by optimizing packet granularity. The 93AA46AE48 EEPROM device from Microchip comes with a factory programmed, globally unique EUI-48™ MAC Address. This Ethernet controller will automatically detect and load the EUI-48™ node address from the 93AA46AE48 EEPROM at start-up or reset. *The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

LAN9117 - 10/100 Base-T/TX Ethernet Controller with 16 Bit Interface

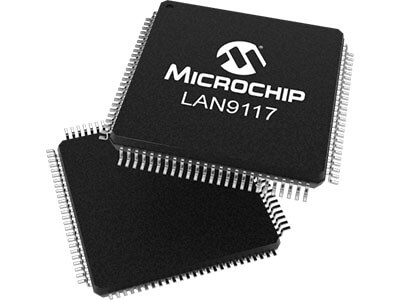

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/LAN9117.jpg?ext=.jpg&maxsidesize=400

The LAN9117 is a full-featured, single-chip 10/100 Ethernet controller designed for embedded applications where performance, flexibility, ease of integration and system cost control are required.

LAN9117
New
LAN9117
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
Interface:
16 bit Host Bus
PHY:
Yes
TX/RX RAM Buffer(Bytes):
16k
Status:
Mature Product Consider: LAN9218
MAC:
Yes
Automotive Grade:
No
Fiber Support:
No
Interrupt Pin:
1
IEEE 1588:
No
WOL:
No
EEE:
No
LEDs:
3
Cable Diag:
No
Op. Voltage (V):
0
Vdd I/O (V):
3.3
Temp Range Min. (°C):
0
Temp Range Max. (°C):
70
Packages:
100/LQFP
