LAN91C111 - 10/100 Base-T/TX Ethernet Controller with 16/32 Bit Interface
LAN91C111

LAN91C111 - 10/100 Base-T/TX Ethernet Controller with 16/32 Bit Interface

Manufacturer: Microchip

Datasheet: LAN91C111

Delivers to:

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

Status: In Production Consider: LAN9218
The Microchip LAN91C111 is designed to facilitate the implementation of a third generation of Fast Ethernet connectivity solutions for embedded applications. For this third generation of products, flexibility and integration dominate the design requirements. The LAN91C111 is a mixed signal Analog/Digital device that implements the MAC and PHY portion of the CSMA/CD protocol at 10 and 100 Mbps. The design will also minimize data throughput constraints utilizing a 32-bit, 16-bit or 8-bit bus Host interface in embedded applications. The total internal memory FIFO buffer size is 8 Kbytes, which is the total chip storage for transmit and receive operations. The Microchip LAN91C111 is software compatible with the LAN9000 family of products.*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

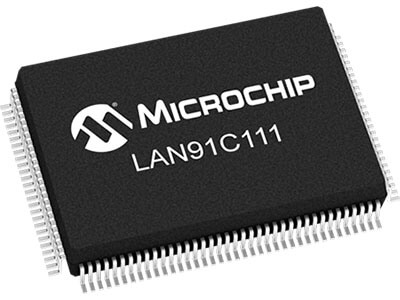

LAN91C111 - 10/100 Base-T/TX Ethernet Controller with 16/32 Bit Interface
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/LAN91C111.jpg?ext=.jpg&maxsidesize=400

The Microchip LAN91C111 is designed to facilitate the implementation of a third generation of Fast Ethernet connectivity solutions for embedded applications.

LAN91C111
New
LAN91C111
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
Interface:
16-bit or 32-bit
PHY:
Yes
TX/RX RAM Buffer(Bytes):
8k
Status:
In Production Consider: LAN9218
MAC:
Yes
Automotive Grade:
No
Fiber Support:
No
Interrupt Pin:
1
IEEE 1588:
No
WOL:
No
EEE:
No
LEDs:
2
Cable Diag:
No
Op. Voltage (V):
0
Vdd I/O (V):
3.3
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
128/QFP, 128/TQFP
