LAN9210 - 10/100 Base-T/TX Ethernet Controller with 16 Bit Interface
Microchip
LAN9210

LAN9210 - 10/100 Base-T/TX Ethernet Controller with 16 Bit Interface

Manufacturer: Microchip

Datasheet: LAN9210

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

Status: In Production Consider: LAN9220
The LAN9210 is a full-featured, single-chip 10/100 Ethernet controller designed for embedded applications where performance, flexibility, ease of integration and system cost control are required. The LAN9210 is fully IEEE 802.3 10BASE-T and 802.3u 100BASE-TX compliant, and supports HP Auto-MDIX. The LAN9210 includes an integrated Ethernet MAC and PHY with a high-performance SRAM-like slave interface. The simple, yet highly functional host bus interface provides a glue-less connection to most common 16-bit microprocessors and microcontrollers as well as 32-bit microprocessors with a 16-bit external bus. The integrated checksum offload engines enable the automatic generation of the 16-bit checksum for received and transmitted Ethernet frames, offloading the task from the CPU. The LAN9210 also includes large transmit and receive data FIFOs to accommodate high latency applications. In addition, the LAN9210 memory buffer architecture allows the most efficient use of memory resources by optimizing packet granularity. The 93AA46AE48 EEPROM device from Microchip comes with a factory programmed, globally unique EUI-48™ MAC Address. This Ethernet controller will automatically detect and load the EUI-48™ node address from the 93AA46AE48 EEPROM at start-up or reset. *The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

LAN9210 - 10/100 Base-T/TX Ethernet Controller with 16 Bit Interface

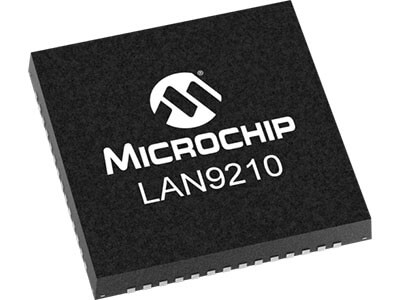

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/LAN9210.jpg?ext=.jpg&maxsidesize=400

The LAN9210 is a full-featured, single-chip 10/100 Ethernet controller designed for embedded applications where performance, flexibility, ease of integration and system cost control are required.

LAN9210
New
LAN9210
0.00
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
Interface:
16 bit Host Bus
PHY:
Yes
TX/RX RAM Buffer(Bytes):
16k
Status:
In Production Consider: LAN9220
MAC:
Yes
Automotive Grade:
No
Fiber Support:
No
Interrupt Pin:
1
IEEE 1588:
No
WOL:
No
EEE:
No
LEDs:
3
Cable Diag:
No
Op. Voltage (V):
0
Vdd I/O (V):
3.3
Temp Range Min. (°C):
0
Temp Range Max. (°C):
70
Packages:
56/VQFN

Manufacturer

Microchip

Microchip Technology Inc. develops and manufactures semiconductor products for various embedded control applications worldwide. Its portfolio comprises 8- and 16-bit pic microcontrollers and 16-bit dspic digital signal controllers, which feature onboard flash (reprogrammable) memory technology; and linear, mixed-signal, power management, thermal management, battery management, and interface devices.

Learn about Microchip
-->
