KSZ8001 - 10/100BASE-T/TX/FX Physical Layer Transceiver
KSZ8001

KSZ8001 - 10/100BASE-T/TX/FX Physical Layer Transceiver

Manufacturer: Microchip

Datasheet: KSZ8001

Delivers to:

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

Status: Mature Product Consider: KSZ8081, KSZ8091
The KSZ8001 is a 10BASE-T/100BASE-TX/100BASE-FX Physical Layer Transceiver, operating the core at 1.8 volts to meet low voltage and low power requirements. The solution provides MII/RMII/SMII interfaces to transmit and receive data. A unique mixed-signal design extends signaling distance while reducing power consumption. HP Auto MDI/MDI-X provides the most robust solution for eliminating the need to differentiate between crossover and straight-through cables. Featuring LinkMD cable diagnostics, which allows detection of common cabling plant problems such as open and short circuits, the KSZ8001 represents a new level of features and performance and is an ideal choice of physical layer transceiver for 100BASE-TX/10BASET/100BASE-FX applications. Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in.

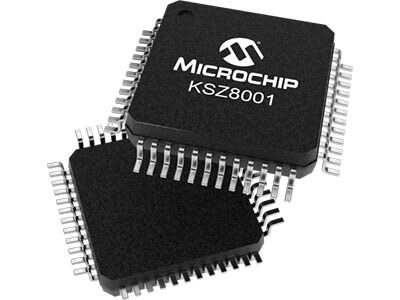

KSZ8001 - 10/100BASE-T/TX/FX Physical Layer Transceiver
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/KSZ8001.jpg?ext=.jpg&maxsidesize=400

The KSZ8001 is a 10BASE-T/100BASE-TX/100BASE-FX Physical Layer Transceiver, operating the core at 1.8 volts to meet low voltage and low power requirements.

KSZ8001
New
KSZ8001
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
Ethernet Ports:
1
Interface:
MII/RMII/SMII
1588v2:
No
MACsec:
No
Ethercat:
Yes
SyncE:
No
Copper Support:
Yes
Fiber Support:
Yes
On-Chip Termination:
No
Cable Diagnostics:
Yes
EEE:
No
LEDs:
4
Internal Regular:
Yes
Op. Voltage (V):
0
MAC I/O Voltage:
3.3
WOL:
No
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
48/LQFP
