Humidity

Need Assistance?

Your local expert is here to help.

Ran de Silva
Engineering Manager
rdesilva@epsglobal.com
+44 118 9473622

Quantity breaks available. View Pricing Table

Pricing Table

Mechanically robust and with a chemical and condensed waterproof sensing area, the digital IST AG HYT 939 humidity module excels with the special robust construction withstanding peak loading at high temperatures. The HYT 939 is also ideal for high pressure applications and is also offered with a pressure tight packaging. Precisely calibrated, the HYT 939 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 939 humidity module is therefore fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” through computation resulting in an outstanding accuracy over a wide range of applications.The digital HYT 939 humidity module is suitable for various medical systems, autoclaves, pressure dew point measurement (pressure tight packaging required), drying systems and laboratory applications.
HYT 939 - Optimal for medical and drying systems, autoclaves, pressure dew point measurement and laboratory applications
https://www.epsglobal.com/getmetafile/f9a8e3fc-ef42-49eb-892f-bca075fd6615/HYT939?maxsidesize=400
<p>Mechanically robust and with a chemical and condensed waterproof sensing area, the digital IST AG HYT 939 humidity module excels with the special robust construction withstanding peak loading at high temperatures. The HYT 939 is also ideal for high pressure applications and is also offered with a pressure tight packaging. Precisely calibrated, the HYT 939 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 939 humidity module is therefore fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” through computation resulting in an outstanding accuracy over a wide range of applications.</p><p>The digital HYT 939 humidity module is suitable for various medical systems, autoclaves, pressure dew point measurement (pressure tight packaging required), drying systems and laboratory applications.</p>
HYT 939
HYT 939
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Quantity breaks available. View Pricing Table

Pricing Table

With its small dimension and high sensitivity, the IST AG K5-W capacitive RH humidity sensor was developed for applications where an accurate measurement in low humidity ranges is required. The sensor is characterized by the outstanding stability in low humidity, very low drift and a high chemical resistance. With its excellent sensor characteristics, the K5-W is the optimal choice for low humidity environments. The humidity sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 200 pF ±50 pF (at 30 % RH and +23 °C) and operates within a temperature range of -40 °C to +150 °C.The IST AG K5-W humidity sensor is available with CuP-SIL wire post-plated with Sn as standard configuration.
K5-W - Optimal for low humidity measurement
https://www.epsglobal.com/getmetafile/09645474-0898-401b-8ab6-43ebc4870faf/K5W?maxsidesize=400
<p>With its small dimension and high sensitivity, the IST AG K5-W capacitive RH humidity sensor was developed for applications where an accurate measurement in low humidity ranges is required. The sensor is characterized by the outstanding stability in low humidity, very low drift and a high chemical resistance. With its excellent sensor characteristics, the K5-W is the optimal choice for low humidity environments. The humidity sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 200 pF ±50 pF (at 30 % RH and +23 °C) and operates within a temperature range of -40 °C to +150 °C.</p><p>The IST AG K5-W humidity sensor is available with CuP-SIL wire post-plated with Sn as standard configuration.</p>
K5-W
K5-W
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Quantity breaks available. View Pricing Table

Pricing Table

The IST AG MK33-W capacitive RH humidity sensor has been developed especially for high-end measuring applications and extreme environments making it optimal for oil applications. The MK33 excels through its extremely high humidity and temperature working range and its outstanding chemical resistance. The humidity sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +95 °C) with a capacitance of 300 pF ±40 pF (at 30 % RH and +23 °C) and operates within a temperature range of -40 °C to +190 °C.The IST AG MK33-W humidity sensor is available with CuP-SIL-wire post-plated with Sn or Au/Cu-wire as standard configuration.
MK33-W - Optimal for oil measurement applications
https://www.epsglobal.com/getmetafile/834b1690-b4ba-4cde-996c-9f6b5d545e8b/MK33W?maxsidesize=400
<p>The IST AG MK33-W capacitive RH humidity sensor has been developed especially for high-end measuring applications and extreme environments making it optimal for oil applications. The MK33 excels through its extremely high humidity and temperature working range and its outstanding chemical resistance. The humidity sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +95 °C) with a capacitance of 300 pF ±40 pF (at 30 % RH and +23 °C) and operates within a temperature range of -40 °C to +190 °C.</p><p>The IST AG MK33-W humidity sensor is available with CuP-SIL-wire post-plated with Sn or Au/Cu-wire as standard configuration.</p>
MK33-W
MK33-W
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Quantity breaks available. View Pricing Table

Pricing Table

Mechanically robust and with a chemical and condensed waterproof sensing area, the IST AG HYT 221 humidity module with a round stainless steel casing can easily be fitted into housing openings and can be sealed against the wall with the use of an O-ring. Combined with the waterproof metal filter, it results into an assembly that is splash waterproof and enables a sealed housing construction while providing a high dynamic responsiveness. Precisely calibrated, the HYT 221 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 221 humidity module is fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” resulting in outstanding accuracy over a wide range of applications.The IST AG digital HYT 221 humidity module is suitable for various meteorology, industrial drying systems, medical devices and agriculture applications.
HYT 221 - Optimal for meteorology, industrial drying systems, agriculture and medical devices
https://www.epsglobal.com/getmetafile/0e5546e7-207b-4e1c-973e-6416e03c2af7/HYT221?maxsidesize=400
<p>Mechanically robust and with a chemical and condensed waterproof sensing area, the IST AG HYT 221 humidity module with a round stainless steel casing can easily be fitted into housing openings and can be sealed against the wall with the use of an O-ring. Combined with the waterproof metal filter, it results into an assembly that is splash waterproof and enables a sealed housing construction while providing a high dynamic responsiveness. Precisely calibrated, the HYT 221 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 221 humidity module is fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” resulting in outstanding accuracy over a wide range of applications.</p> <p>The IST AG digital HYT 221 humidity module is suitable for various meteorology, industrial drying systems, medical devices and agriculture applications.</p>
HYT 221
HYT 221
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Quantity breaks available. View Pricing Table

Pricing Table

Mechanically robust and with a chemical and condensed waterproof sensing area, the digital IST AG HYT 271 humidity modules offer the widest application window and an optimal price-performance ratio. Precisely calibrated, the HYT 271 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 271 humidity module is therefore fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” through computation resulting in an outstanding accuracy over a wide range of applications.The digital IST AG HYT 271 humidity module is suitable for various handheld measurement instruments, humidity transmitters, industrial applications, measuring technology and HVAC applications.
HYT 271 - Optimal for handheld instruments, transmitters, measuring technology and HVAC applications
https://www.epsglobal.com/getmetafile/cd5f9438-2e3b-44d8-bea2-955e401eb498/HYT271?maxsidesize=400
<p>Mechanically robust and with a chemical and condensed waterproof sensing area, the digital IST AG HYT 271 humidity modules offer the widest application window and an optimal price-performance ratio. Precisely calibrated, the HYT 271 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 271 humidity module is therefore fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” through computation resulting in an outstanding accuracy over a wide range of applications.</p><p>The digital IST AG HYT 271 humidity module is suitable for various handheld measurement instruments, humidity transmitters, industrial applications, measuring technology and HVAC applications.</p>
HYT 271
HYT 271
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Quantity breaks available. View Pricing Table

Pricing Table

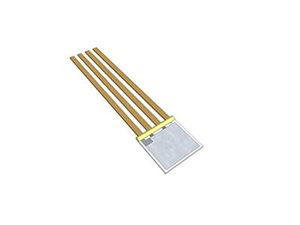

The IST AG P14 2FW Thermo was designed especially for dew point applications and humidity generators. The favorable one-chip solution consists of a capacitive humidity sensor, based on the standard P14 sensor, together with a heating element, which, at the same time, works as a valid Pt100 sensor. The sensor achieves outstanding measurement accuracy due to the optimal thermal coupling which enables a fast recovery time. Due to heating from the Pt100, humidity is quickly released and enables fast re-measurements after condensation. Furthermore, the Pt100 sensor heats out gases or vapors from the polymer, which might cause a drift of the humidity signal. The P14 2FW Thermo humidity sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 150 pF ±50 pF (at 30 % RH and +23 °C) and operates within a temperature range of -50 °C to +150 °C.The IST AG P14 2FW Thermo humidity sensor is available with Ni/Au-flat wire as standard configuration.
P14 2FW Thermo - Optimal for dew point applications
https://www.epsglobal.com/getmetafile/f7593cf9-51c9-4229-aceb-4444f904cbe1/P142FWThermo?maxsidesize=400
<p>The IST AG P14 2FW Thermo was designed especially for dew point applications and humidity generators. The favorable one-chip solution consists of a capacitive humidity sensor, based on the standard P14 sensor, together with a heating element, which, at the same time, works as a valid Pt100 sensor. The sensor achieves outstanding measurement accuracy due to the optimal thermal coupling which enables a fast recovery time. Due to heating from the Pt100, humidity is quickly released and enables fast re-measurements after condensation. Furthermore, the Pt100 sensor heats out gases or vapors from the polymer, which might cause a drift of the humidity signal. The P14 2FW Thermo humidity sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 150 pF ±50 pF (at 30 % RH and +23 °C) and operates within a temperature range of -50 °C to +150 °C.</p><p>The IST AG P14 2FW Thermo humidity sensor is available with Ni/Au-flat wire as standard configuration.</p>
P14 2FW Thermo
P14 2FW Thermo
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Quantity breaks available. View Pricing Table

Pricing Table

Despite its very small size, the IST AG FemtoCap humidity sensor has excellent sensor characteristics that are required in areas such as automotive and white good applications. In combination with external electronics, it offers an excellent cost to performance ratio. The FemtoCap is an optimal cost efficient sensor solution and is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 180 pF ±50 pF (at 30 % RH and +23 °C) and operates within a temperature range of -50 °C to +150 °C.The IST AG P14 FemtoCap humidity sensor is available as SMD for automatic packaging as standard configuration.
P14 FemtoCap - Optimal for automotive and white good applications
https://www.epsglobal.com/getmetafile/6236caaa-288b-43ed-b29c-ab0e97db500b/P14FemtoCap?maxsidesize=400
<p>Despite its very small size, the IST AG FemtoCap humidity sensor has excellent sensor characteristics that are required in areas such as automotive and white good applications. In combination with external electronics, it offers an excellent cost to performance ratio. The FemtoCap is an optimal cost efficient sensor solution and is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 180 pF ±50 pF (at 30 % RH and +23 °C) and operates within a temperature range of -50 °C to +150 °C.</p><p>The IST AG P14 FemtoCap humidity sensor is available as SMD for automatic packaging as standard configuration.</p>
P14 FemtoCap
P14 FemtoCap
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Quantity breaks available. View Pricing Table

Pricing Table

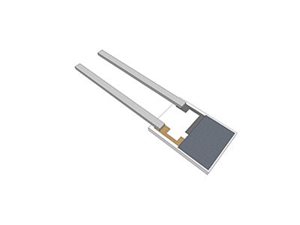

Stable and robust humidity sensors with ultra-fast response time are often required in applications involving meteorology – not only in normal conditions, but also under elevated environmental constraints such as extremely low temperatures, high radiation levels and under extreme condensation. Such applications need fully tailored solutions, such as those provided by the Innovative Sensor Technology IST AG P14 Rapid. The P14 Rapid humidity sensor combines speed and full range operation in an ideal way. The sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 140 pF ±40 pF (wired) / 180 pF ±50 pF (SMD) (at 30 % RH and +23 °C) and operates within a temperature range of -80 °C to +150 °C.The IST AG P14 Rapid humidity sensor is available with CuP-SIL-wire post-plated with Sn, Au/Cu-wire or as SMD for automatic packaging as standard.
P14 Rapid - Optimal for weather balloons and radiosondes
https://www.epsglobal.com/getmetafile/81a58fd4-bb52-45b2-bf6a-b908135ccf22/P14Rapid?maxsidesize=400
<p>Stable and robust humidity sensors with ultra-fast response time are often required in applications involving meteorology – not only in normal conditions, but also under elevated environmental constraints such as extremely low temperatures, high radiation levels and under extreme condensation. Such applications need fully tailored solutions, such as those provided by the Innovative Sensor Technology IST AG P14 Rapid. The P14 Rapid humidity sensor combines speed and full range operation in an ideal way. The sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 140 pF ±40 pF (wired) / 180 pF ±50 pF (SMD) (at 30 % RH and +23 °C) and operates within a temperature range of -80 °C to +150 °C.</p><p>The IST AG P14 Rapid humidity sensor is available with CuP-SIL-wire post-plated with Sn, Au/Cu-wire or as SMD for automatic packaging as standard.</p>
P14 Rapid
P14 Rapid
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Quantity breaks available. View Pricing Table

Pricing Table

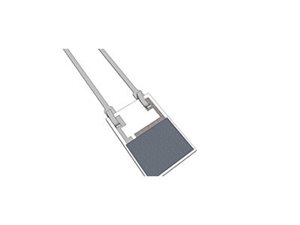

Thanks to its linear characteristics and its wide range of potential uses, the IST AG P14-W humidity sensor is the ideal solution for universal humidity measuring tasks in a wide variety of different applications. The sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 150 pF ±50 pF (wired) / 180 pF ±50 pF (SMD) (at 30 % RH and +23 °C) and operates within a temperature range of -50 °C to +150 °C.
P14-W - Optimal for various humidity applications
https://www.epsglobal.com/getmetafile/f7e8b8ba-1e7e-4351-9881-ac647773bd22/P14W?maxsidesize=400
<p>Thanks to its linear characteristics and its wide range of potential uses, the IST AG P14-W humidity sensor is the ideal solution for universal humidity measuring tasks in a wide variety of different applications. The sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 150 pF ±50 pF (wired) / 180 pF ±50 pF (SMD) (at 30 % RH and +23 °C) and operates within a temperature range of -50 °C to +150 °C.</p>
P14-W
P14-W
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Showing 9 of 9 results

Showing 1 - 9 of 9 results
