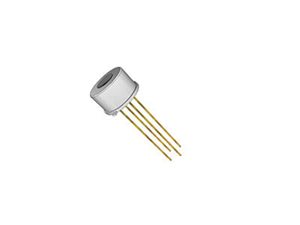

Mechanically robust and with a chemical and condensed waterproof sensing area, the digital IST AG HYT 939 humidity module excels with the special robust construction withstanding peak loading at high temperatures. The HYT 939 is also ideal for high pressure applications and is also offered with a pressure tight packaging. Precisely calibrated, the HYT 939 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 939 humidity module is therefore fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” through computation resulting in an outstanding accuracy over a wide range of applications.The digital HYT 939 humidity module is suitable for various medical systems, autoclaves, pressure dew point measurement (pressure tight packaging required), drying systems and laboratory applications.
HYT 939 - Optimal for medical and drying systems, autoclaves, pressure dew point measurement and laboratory applications
https://www.epsglobal.com/getmetafile/f9a8e3fc-ef42-49eb-892f-bca075fd6615/HYT939?maxsidesize=400
<p>Mechanically robust and with a chemical and condensed waterproof sensing area, the digital IST AG HYT 939 humidity module excels with the special robust construction withstanding peak loading at high temperatures. The HYT 939 is also ideal for high pressure applications and is also offered with a pressure tight packaging. Precisely calibrated, the HYT 939 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 939 humidity module is therefore fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” through computation resulting in an outstanding accuracy over a wide range of applications.</p><p>The digital HYT 939 humidity module is suitable for various medical systems, autoclaves, pressure dew point measurement (pressure tight packaging required), drying systems and laboratory applications.</p>
HYT 939
HYT 939
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Quantity breaks available. View Pricing Table

Pricing Table

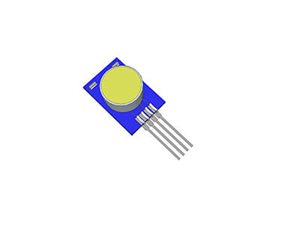

Mechanically robust and with a chemical and condensed waterproof sensing area, the IST AG HYT 221 humidity module with a round stainless steel casing can easily be fitted into housing openings and can be sealed against the wall with the use of an O-ring. Combined with the waterproof metal filter, it results into an assembly that is splash waterproof and enables a sealed housing construction while providing a high dynamic responsiveness. Precisely calibrated, the HYT 221 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 221 humidity module is fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” resulting in outstanding accuracy over a wide range of applications.The IST AG digital HYT 221 humidity module is suitable for various meteorology, industrial drying systems, medical devices and agriculture applications.
HYT 221 - Optimal for meteorology, industrial drying systems, agriculture and medical devices
https://www.epsglobal.com/getmetafile/0e5546e7-207b-4e1c-973e-6416e03c2af7/HYT221?maxsidesize=400
<p>Mechanically robust and with a chemical and condensed waterproof sensing area, the IST AG HYT 221 humidity module with a round stainless steel casing can easily be fitted into housing openings and can be sealed against the wall with the use of an O-ring. Combined with the waterproof metal filter, it results into an assembly that is splash waterproof and enables a sealed housing construction while providing a high dynamic responsiveness. Precisely calibrated, the HYT 221 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 221 humidity module is fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” resulting in outstanding accuracy over a wide range of applications.</p> <p>The IST AG digital HYT 221 humidity module is suitable for various meteorology, industrial drying systems, medical devices and agriculture applications.</p>
HYT 221
HYT 221
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Quantity breaks available. View Pricing Table

Pricing Table

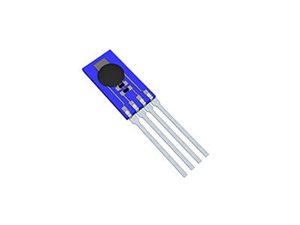

Mechanically robust and with a chemical and condensed waterproof sensing area, the digital IST AG HYT 271 humidity modules offer the widest application window and an optimal price-performance ratio. Precisely calibrated, the HYT 271 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 271 humidity module is therefore fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” through computation resulting in an outstanding accuracy over a wide range of applications.The digital IST AG HYT 271 humidity module is suitable for various handheld measurement instruments, humidity transmitters, industrial applications, measuring technology and HVAC applications.
HYT 271 - Optimal for handheld instruments, transmitters, measuring technology and HVAC applications
https://www.epsglobal.com/getmetafile/cd5f9438-2e3b-44d8-bea2-955e401eb498/HYT271?maxsidesize=400
<p>Mechanically robust and with a chemical and condensed waterproof sensing area, the digital IST AG HYT 271 humidity modules offer the widest application window and an optimal price-performance ratio. Precisely calibrated, the HYT 271 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 271 humidity module is therefore fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” through computation resulting in an outstanding accuracy over a wide range of applications.</p><p>The digital IST AG HYT 271 humidity module is suitable for various handheld measurement instruments, humidity transmitters, industrial applications, measuring technology and HVAC applications.</p>
HYT 271
HYT 271
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389/IST

Showing 3 of 3 results

Showing 1 - 3 of 3 results
