Product Detail

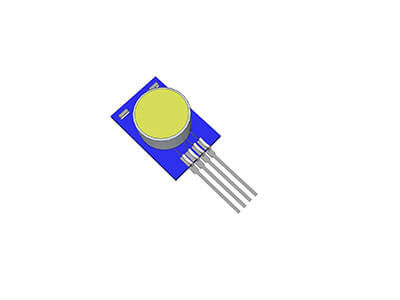

Mechanically robust and with a chemical and condensed waterproof sensing area, the IST AG HYT 221 humidity module with a round stainless steel casing can easily be fitted into housing openings and can be sealed against the wall with the use of an O-ring. Combined with the waterproof metal filter, it results into an assembly that is splash waterproof and enables a sealed housing construction while providing a high dynamic responsiveness. Precisely calibrated, the HYT 221 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 221 humidity module is fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” resulting in outstanding accuracy over a wide range of applications.

The IST AG digital HYT 221 humidity module is suitable for various meteorology, industrial drying systems, medical devices and agriculture applications.

HYT 221 - Optimal for meteorology, industrial drying systems, agriculture and medical devices
https://www.epsglobal.com/getmetafile/0e5546e7-207b-4e1c-973e-6416e03c2af7/HYT221?maxsidesize=400

Mechanically robust and with a chemical and condensed waterproof sensing area, the IST AG HYT 221 humidity module with a round stainless steel casing can easily be fitted into housing openings and can be sealed against the wall with the use of an O-ring. Combined with the waterproof metal filter, it results into an assembly that is splash waterproof and enables a sealed housing construction while providing a high dynamic responsiveness. Precisely calibrated, the HYT 221 delivers an accuracy of ±1.8 % RH and ±0.2 °C and combines the advantages of a precise, capacitive polymer humidity sensor with the high integration density and functionality of an ASIC. The digital software integrated in the module processes the measured data and delivers the physical parameters of relative humidity and temperature over the I²C compatible interface as digital values. The HYT 221 humidity module is fully interchangeable without adjustment and both the linearity error as well as temperature drift are corrected “on-chip” resulting in outstanding accuracy over a wide range of applications.

The IST AG digital HYT 221 humidity module is suitable for various meteorology, industrial drying systems, medical devices and agriculture applications.

HYT 221
New
HYT 221
0.00
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389

Pricing Table

Technical Specification

Technical Details:
  • Calibrated and temperature compensated
  • Excellent humidity/temperature accuracy and stability
  • High chemical resistance
  • I2C protocol (address 0x28 or alternative address)
  • Wide humidity and temperature range (0 % RH to 100 % RH and -40 °C to +125 °C)
  • Very low drift
  • Very stable at high humidity
  • Interchangeable without adjustments

Manufacturer

IST

IST AG specializes in the development and manufacturing of thin- and thick-film platinum and nickel RTD temperature sensors, thermal mass flow sensors, capacitive humidity sensors, conductivity sensors and biosensors. In addition to development and manufacturing of standard sensors, their highly qualified technical team offers consulting and R&D tailored to specific customer requests in the field of sensor technology.
