P14 Rapid - Optimal for weather balloons and radiosondes
IST
P14 Rapid

P14 Rapid - Optimal for weather balloons and radiosondes

Manufacturer: IST

Datasheet: P14 Rapid

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

Stable and robust humidity sensors with ultra-fast response time are often required in applications involving meteorology – not only in normal conditions, but also under elevated environmental constraints such as extremely low temperatures, high radiation levels and under extreme condensation. Such applications need fully tailored solutions, such as those provided by the Innovative Sensor Technology IST AG P14 Rapid. The P14 Rapid humidity sensor combines speed and full range operation in an ideal way. The sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 140 pF ±40 pF (wired) / 180 pF ±50 pF (SMD) (at 30 % RH and +23 °C) and operates within a temperature range of -80 °C to +150 °C.

The IST AG P14 Rapid humidity sensor is available with CuP-SIL-wire post-plated with Sn, Au/Cu-wire or as SMD for automatic packaging as standard.

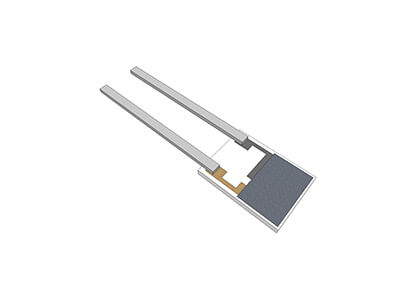

P14 Rapid - Optimal for weather balloons and radiosondes
https://www.epsglobal.com/getmetafile/81a58fd4-bb52-45b2-bf6a-b908135ccf22/P14Rapid?maxsidesize=400

Stable and robust humidity sensors with ultra-fast response time are often required in applications involving meteorology – not only in normal conditions, but also under elevated environmental constraints such as extremely low temperatures, high radiation levels and under extreme condensation. Such applications need fully tailored solutions, such as those provided by the Innovative Sensor Technology IST AG P14 Rapid. The P14 Rapid humidity sensor combines speed and full range operation in an ideal way. The sensor is capable of measuring 0 % RH to 100 % RH (maximal dew point +85 °C) with a capacitance of 140 pF ±40 pF (wired) / 180 pF ±50 pF (SMD) (at 30 % RH and +23 °C) and operates within a temperature range of -80 °C to +150 °C.

The IST AG P14 Rapid humidity sensor is available with CuP-SIL-wire post-plated with Sn, Au/Cu-wire or as SMD for automatic packaging as standard.

P14 Rapid
New
P14 Rapid
0.00
IST
https://www.epsglobal.com/getmetafile/8904bb79-a7f0-4831-ad36-2920bce52389

Pricing Table

Technical Specification

Technical Details:
  • Ultra-fast response time
  • Temperature shock resistant
  • Condensation resistant
  • Fast recovery time
  • High humidity stability
  • Wide temperature range
  • Customer-specific sensor available upon request

Manufacturer

IST

IST AG specializes in the development and manufacturing of thin- and thick-film platinum and nickel RTD temperature sensors, thermal mass flow sensors, capacitive humidity sensors, conductivity sensors and biosensors. In addition to development and manufacturing of standard sensors, their highly qualified technical team offers consulting and R&D tailored to specific customer requests in the field of sensor technology.
