Product Detail

The PAA3905E1-Q by Pixart is an optical motion tracking sensor designed for object motion sensing. It features a wide working distance from 80mm to infinity and requires no focal length calibration. The sensor can auto-detect challenging conditions such as checkerboards, stripes, glossy surfaces, and yawing. It outputs 16-bit motion data and includes a motion detect pin output. The sensor operates with a supply voltage of 1.8~2.1V and an interface voltage of 1.8~3.6V. It communicates via a 4-wire SPI and has a resolution range of 340@35mm to 790@15mm. The package size is 6.0*6.0*2.8mm.

PRI PixArt Imaging Inc.

PAA3905E1-Q General Product Datasheet

Optical Motion Tracking Chip

PAA3905E1-Q: Optical Motion Tracking Chip

General Description

The PAA3905E1 is PixArt Imaging's optical motion tracking chip specifically designed for low light condition operation. The state of the art of architecture allows motion tracking under low light conditions as low as 5 lux. The chip supports a wide working distance of 80 mm to infinity under challenging conditions to cater for different far-field application needs and ambient conditions. It is suitable for far-field tracking applications in providing motion tracking with a stable hovering function for Drone.

Key Features

  • Wide working distance from 80mm to infinity
  • No focal length calibration required
  • Auto-detection of challenging conditions, e.g. checkerboards, stripes, glossy surface, and yawing
  • 16-bit motion data output with motion detect pin output
  • Internal oscillator
  • Raw Data Output through register read
  • Support synchronized multi-chip operation
  • Automatic switching of Operation Mode

Operation Modes

Mode Description Lux (Typ)
0 @ 126 fps Bright Mode for general motion tracking 60
1 @ 126 fps (Default) Low Light Mode for low light motion tracking 30
2 @ 50 fps Super Low Light Mode for super low light and low-speed motion tracking 5

Applications

  • Drone or other devices that require far-field motion detection and hovering stability
  • X-Y positioning in GPS denied environment

Key Parameters

Parameter Value
Supply Voltage VDD: 1.8 to 2.0 V
VDDIO: 1.8 to 3.6 V
Working Range 80 mm to infinity
Interface 4-Wire SPI @ 2MHz
Speed maximum 7.4 rad/s (Mode 0 & 1)
Effective Viewing angle 42°
Power Consumption 3.5 mA at RUN state
Package size (L x W x H) 12-pin LGA Package with L242-ZSZ1 Lens
4.0 x 5.0 x 3.0 mm3

Ordering Information

Part Number Description Package Type Packing Type MOQ
PAA3905E1-Q OMT Chip 12 pins LGA Tube 2000

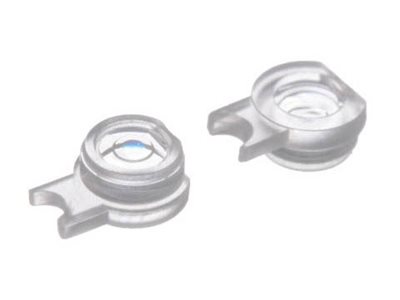

L242-ZSZ1 Lens Plastic lens Tray 2000

RoHS compliant

PAA3905E1-Q
https://www.epsglobal.com/getmetafile/594c9c89-50a0-4eb5-bd09-335e45ba94ef/PAA3905E1-Q?maxsidesize=400
Pixart PAA3905E1-Q optical motion sensor: 80mm to infinity range, 16-bit data, auto-detects surfaces, 1.8~2.1V supply, 4-wire SPI, 6.0*6.0*2.8mm size.
PAA3905E1-Q
New
PAA3905E1-Q
0.00
Pixart
https://www.epsglobal.com/getmetafile/3e42d374-cf50-4012-9e85-842d0969c904

Features & Benefits

  • Wide working distance from 80mm to infinity
  • No focal length calibration required
  • Auto detection of challenging conditions, such as checker boards, stripes, glossy surface and yawing
  • 16-bit motion data output with motion detect pin output
  • Internal oscillator
  • Frame Capture via register read is available

Technical Specifications

Supply Voltage (V)VDD: 1.8~2.1
Interface Voltage (V)VDDIO: 1.8~3.6
Power Consumption (mA)Typ. 6 (sensor only)
Shutdown Current (µA)Typ. 12
Repeated Accuracy Error at Nominal Height3% to 10% (3% on carpet & 6% on laminated wood)
Communication4-wire SPI
Resolution340@35mm to 790@15mm
Tracking SpeedUp to 45ips
Package TypeCOB 28-pin
Package Size (mm)6.0*6.0*2.8
Working Distance to Tracking Surface15~35mm (extendable range)
System Package to Surface0 degree
Light Source Wavelength (nm)870
PA No. of Pairing LensL214-ZSZ
PAA3905E1-Q Datasheet

-->

Manufacturer

Pixart

PixArt Imaging Inc. is a CMOS imaging sensing and navigation company offering a broad selection of sensors and technologies to support today’s complex human-machine interface designs. PixArt specializes in CMOS image sensors (CIS), capacitive touch controllers and related imaging application development.
