PAW3008J1 - Optical Finger Navigation for Smart Rings & Smart Glasses
Pixart
PAW3008J1

PAW3008J1 - Optical Finger Navigation for Smart Rings & Smart Glasses

Manufacturer: Pixart

Datasheet: PAW3008J1

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

The PAW3008J1 by Pixart is an optical finger navigation sensor designed for precise tracking. It features an ultra-slim form factor and low-power consumption with a 3-state sleep mode. The sensor offers programmable resolution from 50CPI to 3200CPI and adaptive resolution that adjusts according to movement speed. It supports capacitive touch detection and operates with an I2C interface. The package type is 9-Ball CSP with dimensions of 1.526mm x 1.656mm x 0.554mm. It operates at a supply voltage of VDDM: 2.56~3.6V and VDDIO: 1.62~3.6V, with a typical operation current of 2.5mA.

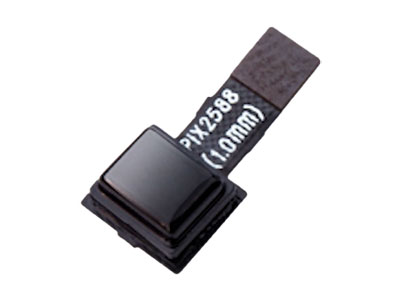

PAW3008J1 - Optical Finger Navigation for Smart Rings & Smart Glasses
https://www.epsglobal.com/getmetafile/39ecf11b-2aa1-4179-8666-63cb2c3f04d4/PAW3008J12?maxsidesize=400
Pixart PAW3008J1: Optical finger navigation sensor with programmable resolution, low-power consumption, capacitive touch detection, and I2C interface. Compact 9-Ball CSP package, 2.5mA typical current.
PAW3008J1
New
PAW3008J1
0.00
Pixart
https://www.epsglobal.com/getmetafile/3e42d374-cf50-4012-9e85-842d0969c904

Features & Benefits

  • Ultra-slim form factor
  • Low-power consumption with 3-state sleep mode
  • Programmable resolution from 50CPI to 3200CPI
  • Adaptive resolution that allows the resolution to self-adjust according to the movement speed
  • Support capacitive touch detetion

Technical Specifications

TypeIC
Package Type & Size (mm)9-Ball CSP; 1.526*1.656*0.554
Supply Voltage (V)VDDM: 2.56~3.6; VDDIO: 1.62~3.6
Operation Current (mA)Typ. 2.5
Sleep Current (µA)Typ. 50 / 25/ 10
InterfaceI2C
Tracking Speed (ips)Up to 24
PD Current (µA)Typ. 8
Peripheral ComponentNone
Resolution (cpi)50~3200
Finger Touch FunctionSingle / Double click
Operating Direction2/4/8/ Free Direction
Adaptive ResolutionYes
Capacitive Touch DetectionYes
-->

Manufacturer

Pixart

PixArt Imaging Inc. is a CMOS imaging sensing and navigation company offering a broad selection of sensors and technologies to support today’s complex human-machine interface designs. PixArt specializes in CMOS image sensors (CIS), capacitive touch controllers and related imaging application development.
