PAA5160E1-Q
PAA5160E1-Q

PAA5160E1-Q

Quantity breaks available. View Pricing Table

Pricing Table

  • Reports accurate dual-axis motion data across different hard floorings
  • Robust tracking performance with instant tracking recovery after crossing over non-trackable surfaces
  • With a typical tracking error rate of 3~5% within a working range of 10mm to 27mm
  • High speed motion tracking of up to 2.5m/s
  • Ideal for navigation tracking of high-speed movable devices, including warehouse robots and commercial robots

Sensors & Boards

Product Detail

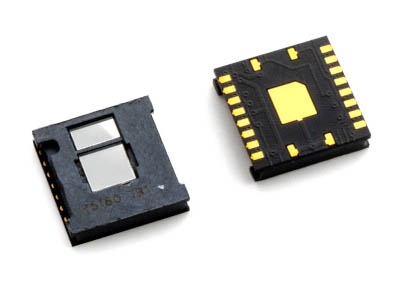

The Pixart PAA5160E1-Q is a high-performance optical tracking sensor that delivers accurate dual-axis motion data across various hard floorings. It boasts robust tracking performance with instant tracking recovery, even after crossing over non-trackable surfaces. The sensor has a typical tracking error rate of 3~5% within a working range of 10mm to 27mm, ensuring precise tracking.

Designed for high-speed motion tracking, it can track movements of up to 2.5m/s, making it ideal for navigation tracking of high-speed movable devices such as warehouse and commercial robots. The sensor comes in a compact LGA package with an integrated light source, offering a view angle of 100 degrees and a sensing distance of 400mm with a 10% tolerance.

The PAA5160E1-Q has a report rate of 60Hz and interfaces with I2C/SPI. It offers a distance resolution of 320P/100 degrees and can detect surrounding features such as cliffs, steps, overhangs, and ground objects. The sensor operates on a supply voltage of 3.3V and consumes 30mA of power. It can be configured with a vertical or horizontal direction of the light plane axis.

Pricing Table

Technical Specification

Additional Documentation

Manufacturer

Pixart

PixArt Imaging Inc. is a CMOS imaging sensing and navigation company offering a broad selection of sensors and technologies to support today’s complex human-machine interface designs. PixArt specializes in CMOS image sensors (CIS), capacitive touch controllers and related imaging application development.
