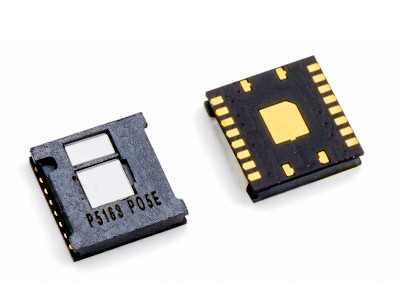

The PAA5163E1-QV22 is PixArt Imaging’s latest optical tracking chip designed to enable navigation up to the speed of 3.8m/s on a wide range of surfaces. The chip is housed in a 6 x 6 x 1.35 mm3 16-pin land-grid-array (LGA) package with an integrated laser illumination that provides X-Y motion data and consistent resolution. It is suitable for motion tracking in industrial applications.

PAA5163E1-QV22
https://www.epsglobal.com/getmetafile/b8bd8efc-4999-46cf-be4d-b37a79bbb06a/PAA5163E1-QV22?maxsidesize=400
The PAA5163E1-QV22 is PixArt Imaging’s latest optical tracking chip designed to enable navigation up to the speed of 3.8m/s on a wide range of surfaces. The chip is housed in a 6 x 6 x 1.35 mm3 16-pin land-grid-array (LGA) package with an integrated laser illumination that provides X-Y motion data and consistent resolution. It is suitable for motion tracking in industrial applications.
PAA5163E1-QV22
New
PAA5163E1-QV22
0.00
Pixart
https://www.epsglobal.com/getmetafile/3e42d374-cf50-4012-9e85-842d0969c904

Features & Benefits

  • Speed up to 3.8 m/s
  • Working Distance 15 to 50 mm on high gloss surfaces
  • Working Distance 15 to 35 mm on medium gloss surfaces
  • Typical power consumption of 16.5 mA
  • No lens required
  • Reports accurate XY motion data

Technical Specifications

Supply VoltageVDD: 1.8 to 2.1 V; VDD_VCSEL: 2.8 to 3.3 V; VDDIO: 1.8 to 3.3 V
Working Distance to Tracking Surface15 to 50 mm
Frame Rate (max.)20,000 fps
Speed (max.)3.8 m/s
Acceleration10 g; 98 m/s²
Resolution (max.)20,000 cpi; 7,874 count/cm
Interface4-Wire SPI @ 4 MHz
Package Size6 x 6 x 1.35 mm³
Power Consumption16.5 mA typical
PAA5163E1-QV22 Datasheet

-->
