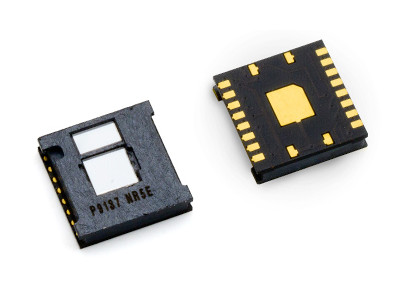

The PAT9137E1-QV33 is PixArt Imaging’s latest optical tracking chip designed to enable navigation up to the speed of 6m/s on a wide range of surfaces. The chip is housed in a 6 x 6 x 1.35 mm3 16-pin land-grid-array (LGA) package with an integrated laser illumination that provides X-Y motion data and consistent resolution. It is suitable for motion tracking in industrial applications.

PAT9137E1-QV33
https://www.epsglobal.com/getmetafile/c83ed2c9-647b-4b9b-bf9d-37e3bf74ccb5/PAT9137E1-QV33?maxsidesize=400
The PAT9137E1-QV33 is PixArt Imaging’s latest optical tracking chip designed to enable navigation up to the speed of 6m/s on a wide range of surfaces.
PAT9137E1-QV33
New
PAT9137E1-QV33
0.00
Pixart
https://www.epsglobal.com/getmetafile/3e42d374-cf50-4012-9e85-842d0969c904

Features & Benefits

  • Speed up to 6m/s
  • Working Distance 5 to 50mm on High-Gloss Surfaces
  • Working Distance 5 to 30mm on Medium-Gloss Surfaces
  • Working Distance 15 to 50mm on Low-Gloss Surfaces
  • Typical Power Consumption of 16.5mA
  • No Lens Required
  • Reports Accurate XY Motion Data

Technical Specifications

Supply Voltage (VDD)1.8 to 2.1 V
Supply Voltage (VDD_VCSEL)2.8 to 3.3 V
Supply Voltage (VDDIO)1.8 to 3.3 V
Working Distance to Tracking Surface5 to 50 mm
Frame Rate (Max.)20,000 fps
Speed (Max.)6 m/s
Acceleration10 g; 98 m/s²
Resolution (Max.)20,000 cpi; 7,874 count/cm
Interface4-Wire SPI @ 4 MHz
Package Size6 x 6 x 1.35 mm³
PAT9137E1-QV33 Datasheet

-->

Manufacturer

Pixart

PixArt Imaging Inc. is a CMOS imaging sensing and navigation company offering a broad selection of sensors and technologies to support today’s complex human-machine interface designs. PixArt specializes in CMOS image sensors (CIS), capacitive touch controllers and related imaging application development.
