Product Detail

The AFBR-S50MV85I sensor has been developed with a special focus on industrial sensing applications for short to medium distances of typical up to 5m. Examples are high resolution surveillance, motion and gesture sensing. The module has an integrated 850 nm laser light source and due to a 13°x6° emission cone, it can use all 32 Pixels simultaneously, independent of the object distance.

AFBR-S50MV85I - Time-of-Flight Sensor Module for Distance and Motion Measurement
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/Broadcom/AFBR-S50MV85I.jpg?ext=.jpg&maxsidesize=400
The AFBR-S50MV85I is a pyro sensor designed for industrial applications, featuring high-resolution surveillance, motion and gesture sensing, and an integrated 850 nm laser light source.
AFBR-S50MV85I
New
AFBR-S50MV85I
0.00
Broadcom
https://www.epsglobal.com/getmetafile/f452823c-b83c-4b60-81f7-d68e03862232

Features & Benefits

  • Integrated 850 nm laser light source
  • Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels
  • Transmitter beam of 13° x 6° to illuminate all 32 pixels
  • Reference pixel for system health monitoring
  • Measurement rates of up to 1 kHz (33 pixels)
  • Typical distance range up to 5m
  • Unambiguous range up to 100m with dual frequency mode
  • Operation of up to 200k Lux ambient light

Technical Specifications

Application Area 1Security surveillance
Application Area 2Robotics
Application Area 3Augmented reality
Application Area 43D distance measurement
Application Area 5Human machine interfaces
LifecycleActive
RoHS6 CompliantY
Supply Voltage (V)4.5 - 5.5

Resources

AFBR-S50MV85I - Time-of-Flight Sensor Module for Distance and Motion Measurement Datasheet
AFBR-S50MV85I - Datasheet

AFBR-S50MV85I - Datasheet
AFBR-S50MV85I - Datasheet

Time of Flight sensor in Drone Applications
AFBR-S50MV85I - Datasheet

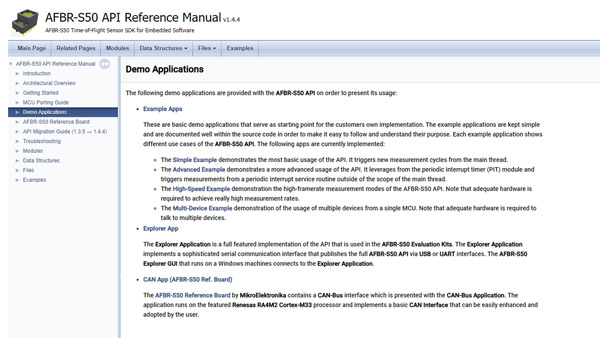

AFBR-S50-API OpenSource API on GitHub
-->
