Platinum

200 °C Series (-50 °C to +200 °C)

https://www.epsglobal.com/getmetafile/fe1c0c45-d169-456f-9e99-8779b91403fb/P1K01022IB0?maxsidesize=400

<p>The IST AG 200 °C Pt Temperature Sensor Series offers an excellent long-term stability and fast response time with low self-heating within a temperature range of -50 °C to +200 °C.​ The sensors are offered in various standard lengths with Cu/Ag- single or stranded wire with PTFE -insulation. The directly welded wires offer an outstanding robustness and are optimal for connector assemblies or for soldering, welding and crimping. Additionally, the 200 °C Pt temperature sensors are also available with Ag-wire (Ø 0.25 mm) and metallized backside.</p>

P1K0.102.2I.B_0

P1K0.102.2I.B_0

300 °C Series (-200 °C to +300 °C)

https://www.epsglobal.com/getmetafile/59936489-fbf6-4a67-968e-df2d9c017f4a/P0K12023FWB?maxsidesize=400

<p>The IST AG 300 °C Pt Temperature Sensor Series offers an excellent long-term stability and fast response time with low self-heating within a temperature range of -200 °C to +300 °C.​ The sensors offer a stable performance at a low price and are available with Au-coated Ni-wire which makes them ideal for soldering, brazing, crimping and laser welding.</p>

P0K1.202.3FW.B

P0K1.202.3FW.B

400 °C Series (-200 °C to +400 °C)

https://www.epsglobal.com/getmetafile/6dfd5cd0-e542-45af-8687-70dfad3d240f/P1K05204WB?maxsidesize=400

<p>The IST AG 400 °C Pt Temperature Sensor Series offers an excellent long-term stability and fast response time with low self-heating within a temperature range of -200 °C to +400 °C.​ The sensors are vibration and temperature shock resistant and offer excellent solderability.</p>

P1K0.520.4W.B

P1K0.520.4W.B

600 °C Series (-200 °C to +600 °C)

https://www.epsglobal.com/getmetafile/dc372831-eb70-4d1f-86fb-745345a945b8/P0K11616WB0?maxsidesize=400

<p>The IST AG 600 °C Pt Temperature Sensor Series offers excellent long-term stability and fast response time with low self-heating within a temperature range of -200 °C to +600 °C.​ The sensors are a standard solution for various temperature applications. The RTDs are suitable for welding, crimping and brazing.</p>

P0K1.161.6W.B_0

P0K1.161.6W.B_0

750 °C Series (-200 °C to +750 °C)

https://www.epsglobal.com/getmetafile/a54f5da1-89d1-4456-8fe4-9c69dcba070d/P0K13087WC0?maxsidesize=400

<p>The IST AG 750 °C Pt Temperature Sensor Series offers measurements in high temperatures and excellent long-term stability, fast response time and low self-heating within a wide temperature range of -200 °C to +750 °C.​ Due to the special materials the sensors are very vibration resistant.</p>

P0K1.308.7W.C_0

P0K1.308.7W.C_0

850 °C Series (-200 °C to +850 °C)

https://www.epsglobal.com/getmetafile/15d6a5f8-20f2-4e8c-99c7-1600109ce8ee/P0K15168WC007?maxsidesize=400

<p>The IST AG 850 °C Pt Temperature Sensor Series is the successor of the 750 °C Series offering temperature measurements from -200 °C to +850 °C. These RTDs are characterized by excellent long-term stability and fast response time with low self-heating even in harsh conditions and extreme temperatures.​ The Pt temperature sensors up to 850 °C are vibration and temperature shock resistant and offer simple interchangeability.</p>

P0K1.516.8W.C.007

P0K1.516.8W.C.007

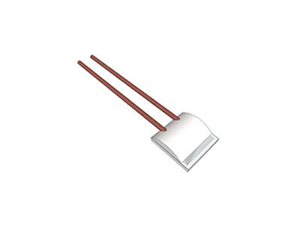

150 °C Series (-50 °C to +150 °C)

https://www.epsglobal.com/getmetafile/0582d20f-6cba-4ebc-87f9-891ed2335d47/P0K11611EB?maxsidesize=400

<p>The IST AG 150 °C Pt Temperature Sensor Series offers excellent long-term stability and fast response time with low self-heating within a temperature range of -50 °C to +150 °C. ​The sensors are developed with an insulated enameled Cu-wire, which enables easy integrating into applications. The insulation is additionally removed at the end of the wire to enable easy welding or soldering. Due to the small diameter of the enameled Cu-wire (Ø 0.2 mm), the temperature sensor is offered with extremely small dimensions (see "characteristics" for more information about small dimensions) and with long, directly welded wires.</p>

P0K1.161.1E.B

P0K1.161.1E.B

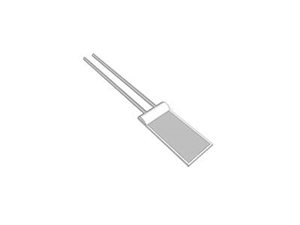

1000 °C Series (-70 °C to +1000 °C)

https://www.epsglobal.com/getmetafile/ccb31a2f-e102-4b8e-bb1a-f2255d393e8e/P0K242010KK007D?maxsidesize=400

<p>With the 3770 ppm/K characteristics curve, the IST AG 1000 °C Pt Temperature Sensor Series is specially developed for the automotive industry. The 1000 °C RTDs offer an excellent long-term stability and fast response time with low self-heating within a very wide temperature range of -70 °C to +1000 °C.​ The sensors are vibration resistant and offer simple interchangeability as well as small dimensions.</p>

P0K2.420.10K.K.007.D

P0K2.420.10K.K.007.D
