N25 - Low-power Consumption and High-performance NB-IoT/GPRS Module
N25

N25 - Low-power Consumption and High-performance NB-IoT/GPRS Module

Manufacturer: Neoway

Datasheet: N25

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

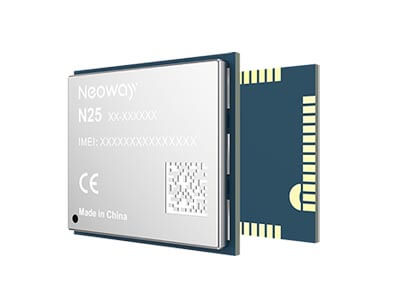

N25 is a low-power consumption and high-performance NB-IoT/GPRS module. Its dimensions are 20.0 mm x 24.0 mm x 2.3 mm. Its pins are packaged in LGA, which reduces the product area. N25 can be used in most regions where NB-IoT/GPRS networks are deployed, including China, Europe, and Asia-Pacific. N25 integrates industrial UART interfaces and supports various network protocols, such as CoAP, UDP, TCP, IP, and MQTT. With low-power consumption, ultra-wide operating temperature range, and excellent RF performance, N25 is the optimal option for energy metering, smart lock, security, environmental monitoring, and other scenarios.

Features

  • NB-IoT / GPRS
  • eSIM optional
  • -40℃ to 85℃
  • UplUplUpl

N25 - Low-power Consumption and High-performance NB-IoT/GPRS Module
https://www.epsglobal.com/getmetafile/16e7e4e8-1fb0-4960-a216-cb9701632192/N25?maxsidesize=400

N25 supports both NB-IoT and GSM, and supports eSIM cards, ePSM/MOTA/FOTA, and BLE GATT.

N25
New
N25
Neoway
https://www.epsglobal.com/getmetafile/5a9e2ff4-82ea-4fbf-9b77-f09e2e802314

Pricing Table

Technical Specification

Supply Voltage:
3.4 V to 4.3 V, Typ.: 3.8 V
Dimensions:
24.0 mm x 20.0 mm x 2.45 mm
Frequency Bands:
CN: HD-FDD NB-IoT: B3/B5/B8 GSM|GPRS: 900/1800 MHz EU: HD-FDD NB-IoT: B3/B5/B8/B20/B28 GSM|GPRS: 850/900/1800/1900 MHz
Package:
52-pin LGA
Interface:
UART x 2 PWRKEY_N RESET_N WAKEUP_IN WAKEUP_OUT NET_LIGHT USIM (1.8 V / 3.0 V)
BT:
BTE (Generic Attribute profile)
Protocol:
CoAP/UDP/LWM2M/MQTT/TCP/DTLS/DNS/FTP/HTTP/HTTPS
ESD:
ESD VBAT: ±8 kV / ±15 kV GND: ±8 kV / ±15 kV ANT: ±8 kV / ±15 kV Other: ±2 kV / ±4 kV
