home products Semiconductors Wireless Modules N27 - NB-IoT/eMTC Module Designed for M2M and IoT
N27 - NB-IoT/eMTC Module Designed for M2M and IoT
N27

N27 - NB-IoT/eMTC Module Designed for M2M and IoT

Manufacturer: Neoway

Datasheet: N27

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

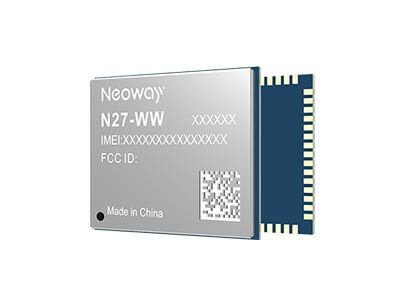

N27 is an NB-IoT/eMTC module specially designed for M2M and IoT applications. Adopting the 3GPP Rel.14 LTE technology, it delivers 1119 kbps downlink and 588 kbps uplink data rates. N27 supports location technology Gen9 VT (GPS, GLONASS, BDS, Galileo, and QZSS). The integrated GNSS greatly simplifies product design, and provides faster, more accurate and more reliable positioning functions. N27 integrates industrial UART interfaces and supports various network protocols, such as CoAP, UDP, TCP, and MQTT. N27 has excellent RF performance, low power consumption, and an ultra-wide operating temperature range. With various industry-standard interfaces and abundant functions (USB serial drivers for Windows 7/8/8.1/10, Linux, and Android), this module is an optimal option for energy metering, telematics, smart city, tracking, and environmental monitoring, and other scenarios.

Features

  • Open ThreadX
  • Cat.M1/Cat.NB2/GPRS
  • CLASS 3/5
  • GNSS
  • -40℃ to +85℃
  • Upl

N27 - NB-IoT/eMTC Module Designed for M2M and IoT
https://www.epsglobal.com/getmetafile/4236db9d-faec-4ce1-b4a6-b2adb37bab31/N27?maxsidesize=400

N27 supports Cat.M1/Cat.NB2/EGPRS, Class3/5, GNSS, and open ThreadX.

N27
New
N27
Neoway
https://www.epsglobal.com/getmetafile/5a9e2ff4-82ea-4fbf-9b77-f09e2e802314

Pricing Table

Technical Specification

Supply Voltage:
3.1V to 4.3V, Typ.:3.6V
Dimensions:
24.0 mm x 18.0 mm x 2.3 mm
Frequency Bands:
-W3: eMTC: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 -WW: NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B71/B66/B85 eMTC: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 -W1: NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B31/B66/B72/B73/B85 eMTC: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B31/B66/B72/B73/B85
Package:
76-pin LGA
Interface:
PCM/I2S ADC*2 I2C*1 (Open) SPI*1 (Open) UART*2 USB2.0 PWRKEY_N WAKEUP_IN WAKEUP_OUT NET_LIGHT USIM(1.8V) LCD(EBI2)
Storage:
Optional (ROM: 512Mb or 1Gb; RAM:256Mb)
GNSS:
GPS/BDS/GLONASS/GALILEO/QZSS (Optional)
Protocol:
CoAP/UDP/LWM2M/MQTT/TCP/DTLS/DNS/FTP/HTTP(s)
