N58 - LTE Cat.1 Module
N58

N58 - LTE Cat.1 Module

Manufacturer: Neoway

Datasheet: N58

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

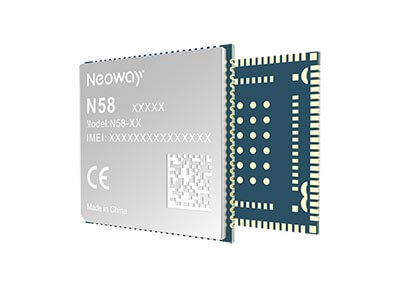

N58 is an LTE Cat.1 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel.13 LTE technology, it provides 10 Mbps downlink and 5 Mbps uplink data rates. N58 has excellent RF performance, ultra-low power consumption, and an ultra-wide operating temperature range. Its USB serial drivers are applicable to Windows 7/8/8.1/10, Linux, and Android OS. With integration of network protocols, industry-standard interfaces, and abundant functions, N58 is an optimal option for energy metering, telematics, sharing/payment products, device management, and other industry applications.

Features

  • Pin2Pin N720
  • Extensible memory
  • GNSS
  • -40℃ to 85℃
  • UplUpl

N58 - LTE Cat.1 Module
https://www.epsglobal.com/getmetafile/8b8a790b-1f63-48b8-afab-846dd7278923/N58?maxsidesize=400

N58 is the industry's first Cat.1 bis module that supports GNSS, BT and BT/Wi-Fi scan.

N58
New
N58
Neoway
https://www.epsglobal.com/getmetafile/5a9e2ff4-82ea-4fbf-9b77-f09e2e802314

Pricing Table

Technical Specification

Supply Voltage:
3.3 V to 4.3 V, Typ.: 3.8 V
Dimensions:
30.0 mm x 28.0 mm x 2.8 mm
Frequency Bands:
CA: LTE Cat.1: B1/B3/B5/B8/B34/B39/B40/B41 GSM|GPRS: 900/1800 MHz EU/EMEA/SEA: LTE FDD: B1/B3/B5/B7/B8/B20/B28 LTE TDD: B38/B40 GSM|GPRS: 900/1800 MHz
Package:
192-pin LCC+LGA
Interface:
PCM / I2S ADC x 1 I2C x 1 SPI x 1 UART x 2 USB 2.0 PWRKEY_N RESET_N PSM_WAKEUP (Into sleep mode) NET_LIGHT USIM (1.8 V / 3.0 V) x 2 (Dual card single standby) SDIO 1PPS (optional)
Storage:
ROM+RAM: 64 Mb + 128 Mb
Protocol:
TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP/NITZ
GNSS (Optional):
GPS/BDS/GLONASS
