N77-CA - 4G Module that Supports all Network Modes
N77-CA

N77-CA - 4G Module that Supports all Network Modes

Manufacturer: Neoway

Datasheet: N77-CA

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

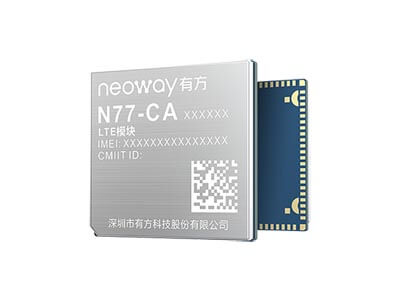

N77-CA is a 4G module that supports all network modes with LGA package, which provides 150 Mbps downlink and 50 Mbps uplink data rates. N77 has excellent RF performance, ultra-low power consumption and an ultra-wide operating temperature range. It is an optimal option for utility, industrial router, LCD, sharing/payment products and other industry applications.

Features

  • All bands
  • Variety interface
  • -40℃ to 85℃
  • UplUplUpl

N77-CA - 4G Module that Supports all Network Modes
https://www.epsglobal.com/getmetafile/e56b8802-0187-4915-a78f-c3b487342e27/N77-CA?maxsidesize=400

N77-CA can be uesd in utility, industrial router, LCD, sharing/payment products and other industry applications.

N77-CA
New
N77-CA
Neoway
https://www.epsglobal.com/getmetafile/5a9e2ff4-82ea-4fbf-9b77-f09e2e802314

Pricing Table

Technical Specification

Supply Voltage:
3.4 V to 4.3 V
Dimensions:
30.0 mm x 28.0 mm x 2.8 mm
Frequency Bands:
LTE FDD: B1/B3/B5/B8 LTE TDD: B34/B38/B39/B40/B41 WCDMA: B1/B5/B8 GSM/GPRS/EDGE: 900/1800 MHz
Package:
LGA
Interface:
UART x 2 USB ADC x 2 IIC x 2 SPI x 1 USIM
Protocol:
TCP/UDP/HTTP/FTP/MQTT
ESD:
VBAT: ±8 kV / ±15 kV GND: ±8 kV / ±15 kV ANT: ±8 kV / ±15 kV Other: ±2 kV / ±4 kV
Region:
China
