Product Detail

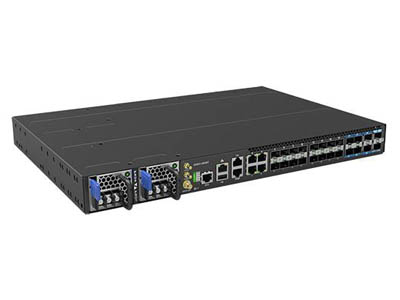

The UfiSpace S9501-28SMT is a disaggregated cell site gateway (DCSG) that can aggregate legacy and current generation BBU equipment. It enables the deployment of open and disaggregated transport network services, while addressing the changing needs of the backhaul transport as telecoms make the transition from legacy technologies towards 5G New Radio (5G NR).

The S9501-28SMT is designed with high-speed interfaces (100M/1G serial RJ45, 1GE SFP and 10GE SFP+), full timing interfaces (ToD, BITS, 1PPS and 10MHz) and BMC for remote monitoring and managing capabilities. It is equipped with Broadcom's Qumran-UX merchant silicon chip and provides 120GB switching capacity, 125Mpps packet throughput and 1GB deep packet buffer to accommodate the evolving cell site requirements of 5G services.

Furthermore, UfiSpace's disaggregated cell site gateway routers are designed for outside plant installation, with temperature hardened case and compact size to fit into smaller cabinets. It is designed with hot swappable and field replaceable power supplies and fan units for convenience and easy maintenance.

S9501-28SMT 28-Port, 1/10GE Disaggregated Cell Site Gateway
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/UfiSpace/S9501-28SMT.jpg?ext=.jpg&maxsidesize=400
The UfiSpace S9501-28SMT is a disaggregated cell site gateway with high-speed interfaces, full timing interfaces, and remote monitoring capabilities. It features Broadcom's Qumran-UX chip, 120GB switching capacity, 125Mpps packet throughput, and a 1GB deep packet buffer. It's designed for outdoor installation with a temperature-hardened case and compact size.
S9501-28SMT
New
S9501-28SMT
0.00
ufiSpace
https://www.epsglobal.com/getmetafile/d12990ae-2a23-456e-8f8c-1604875b0cc9

Features & Benefits

  • Full featured, Economic Cell Site Gateway
  • Supports SyncE and IEEE 1588
  • 4 x 100M/1GE RJ45 ports
  • 16 x 100M/1GE/2.5GE SFP ports
  • 8 x 1GE/2.5GE/10GE SFP+ ports
  • 1 x RJ45 serial console port

Technical Specifications

ASICBroadcom Qumran-UX BCM88270
Chassis1RU, 440W x 43.5H x 302D mm (17.32" x 1.713" x 11.89") Weight: 6.6 kg (14.55 lbs)
Memory1x8GB DDR4 SO-DIMM with ECC
Non-Operating Spec.Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 5% to 95% (RH), non-condensing
Operating Spec.-40°C to 65°C (-40°F to 149°F) Operating humidity: 5% to 95% (RH), non-condensing
Power supplyAC input: 100 to 240V, 3A DC input: -36 to -75V, 8A Max power: 200 Watts
ProcessorIntel Denverton-NS 4 Core @1.6GHz
Redundancy1+1 Hot swappable power units 2+1 Hot swappable fan units
Storage1x32GB SSD
-->

Manufacturer

ufiSpace

UfiSpace provides end-to-end 5G networking solutions for telecommunication companies, cloud service providers and data centers. Their passion and dedication towards customer service and engineering excellence has brought UfiSpace to the forefront of 5G technology innovation.
