Product Detail

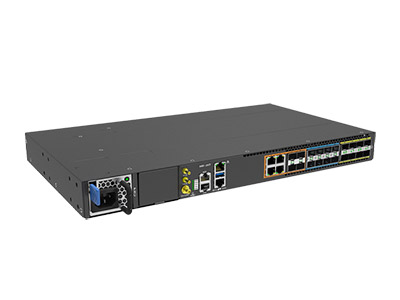

The UfiSpace S9511-20CT is a high-performance, versatile open networking white box router that is designed to address the changing needs of backhaul transport requirements as Telecoms make the transition from legacy technologies towards 5G. It enables telecoms and service providers to deploy disaggregated open network infrastructure to lower costs and rapidly scale existing services for edge computing, mobile backhaul, and broadband access applications.

The S9511-20CT is designed for the future, featuring 20 high-speed interfaces, including configurable 1G combo ports and 10G/25G options, to support a wide range of client connections. With a compact 250mm depth and a temperature-hardened design, it's ideal for both indoor and outdoor deployments.

S9511-20CT - 20-Port 1/10/25G Disaggregated Cell Site Gateway Router
https://www.epsglobal.com/getmetafile/4af99f0b-baab-4301-b3d0-e72f0c845e38/S9511-20CT?maxsidesize=400
The UfiSpace S9511-20CT is a high-performance, versatile open networking white box router that is designed to address the changing needs of backhaul transport requirements as Telecoms make the transition from legacy technologies towards 5G.
S9511-20CT
New
S9511-20CT
0.00
ufiSpace
https://www.epsglobal.com/getmetafile/d12990ae-2a23-456e-8f8c-1604875b0cc9

Features & Benefits

  • Supports TSN, SyncE, and IEEE 1588
  • 8x 1/10/25G SFP28 ports
  • 8x 1/10G SFP+ ports
  • 4x 1G SFP/RJ45 combo ports
  • 1x RJ45 serial console port
  • 1x 100/1000M RJ45 management port
  • 1x USB 3.0 Type-A general purpose port
  • GNSS, 1PPS, 10MHz, ToD and BITS timing ports
  • Segment routing support

Technical Specifications

ProcessorIntel Denverton-NS 4-Core @ 1.6GHz
Memory8GB DDR4
Storage32GB eMMC
ASICBroadcom Qumran2n BCM88295
Chassis1RU, 440W x 250D x 43.5H mm (17.32" x 9.84" x 1.713"); Weight: 4.18 kg (9.21 lbs)
RedundancyDual-feed one power stage power unit; 3+1 Fixed fan units
Power SpecsDC input: -36V to -72V, 8A
Typical power63 Watts (no transceiver)
Operating SpecsOperating temperature:-40°C to 70°C (-40°F to 158°F); Operating humidity: 5% to 95% (RH), non-condensing
Non-Operating SpecsStorage temperature: -40°C to 70°C (-40°F to 158°F); Storage humidity: 5% to 93% (RH), non-condensing
-->

Manufacturer

ufiSpace

UfiSpace provides end-to-end 5G networking solutions for telecommunication companies, cloud service providers and data centers. Their passion and dedication towards customer service and engineering excellence has brought UfiSpace to the forefront of 5G technology innovation.
