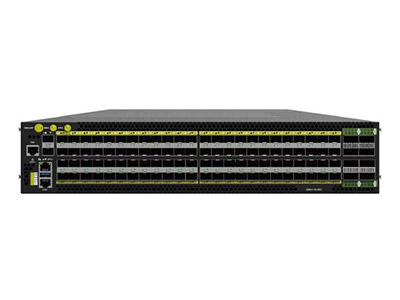

S9601-104BC - 104-Port, 25/100/200G Open Aggregation Router

S9601-104BC - 104-Port, 25/100/200G Open Aggregation Router

Manufacturer: ufiSpace

Datasheet: S9601-104BC

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorised Distributors
Authorized Distributor
Stock Availability
Bulk Discounts
Volume Discounts
Technical Support
Includes Warranty

Product Detail

The S9601-104BC open aggregation router is a multi-function, disaggregated white box aggregation routing platform with an external TCAM. It is equipped with Broadcom's Qumran2c merchant silicon and Intel Skylake processor for high capacity routing, better power efficiencies, and more buffering within a compact 2RU router. It features 96x25G, 4x100G, and 4x200G high-speed ports with a switching capacity of up to 2.4Tbs.

The S9601-104BC can be deployed at C-RAN hubs to provide 5G fronthaul transport aggregation or be positioned at the backhaul for aggregating BBU pooling. It can also be programmed to be a Broadband Network Gateway (BNG) to enable the next generation broadband network. Equipped with high port density, Class C timing, and fully supporting SyncE and IEEE 1588v2, the S9601-104BC is capable of fulfilling the role of any type of network aggregation.

S9601-104BC - 104-Port, 25/100/200G Open Aggregation Router
The S9601-104BC is a multi-function, open aggregation router with Broadcom's Qumran2c silicon, Intel Skylake processor, and an external TCAM. It features 96x25G, 4x100G, 4x200G ports, and a 2.4Tbs switching capacity.

Features & Benefits

  • Class C timing accuracy
  • Supports SyncE and IEEE 1588v2 (T-GM, T-BC/OC, T-TC, T-TSC)
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Rich timing input/output interfaces: ToD, 1PPS and 10MHz
  • Internal GNSS receiver for master clock implementations
  • 4GB deep buffering
  • Equipped with an external TCAM
  • BMC for remote monitoring and management

Technical Specifications

ASICBroadcom Qumran2c BCM88820; Broadcom OP2 BCM16K
Chassis2RU, 436W x 440D x 87.7H mm (17.17" x 17.32" x 3.45")
Memory32GB DDR4
Non-Operating Spec.Storage temperature: -40°C to 70°C (-40°F to 158°F)
Operating Spec.0°C to 50°C (32°F to 122°F)
Power supplyAC input: 100 to 240V, 15A; DC input: -40 to -72V, 42A
ProcessorIntel Denverton 8-Core @ 1.7GHz
Redundancy1+1 Hot swappable power units; 3+1 Hot swappable fan units
Storage128GB SSD
