AMX3200 - 3.2T Coherent Transponder and Muxponder
Edgecore
AMX3200

AMX3200 - 3.2T Coherent Transponder and Muxponder

Manufacturer: Edgecore

Datasheet: AMX3200

Delivers to:

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

AMX3200 is a new-generation coherent transponder and muxponder with 3.2 Tbps switching capacity that is designed for building high-capacity optical transport networks.

AMX3200 is designed and built as a disaggregated system to offer flexibility with different NOS options in modular sled-based line modules.

AMX3200 is designed to expand Datacenter Interconnect (DCI), and service provider backhaul over the coherent-wavelength-supporting C-band channel in different applications based on CFP2-DCO specifications.

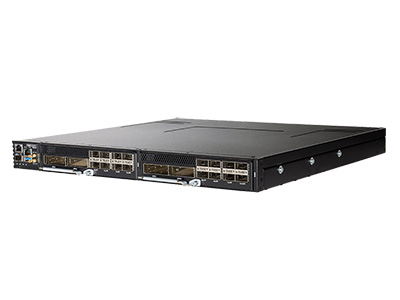

AMX3200 - 3.2T Coherent Transponder and Muxponder
https://www.epsglobal.com/getmetafile/65c9e1dc-d07a-4fa5-9af5-a7d5fda344a6/AMX3200?maxsidesize=400
Edgecore's AMX3200 is a new-generation coherent transponder and muxponder with 3.2 Tbps switching capacity that is designed for building high-capacity optical transport networks.
AMX3200
New
AMX3200
0.00
Edgecore
https://www.epsglobal.com/getmetafile/10a48348-92a3-4d28-8c95-bfba77fc5c82

Features & Benefits

  • 100G/200G/300G/400G high capacity for 1000km/2000km long-haul transmission
  • Dual front-panel modular sled design, each sled supports 8 x QSFP+/QSFP28 client interfaces and 2 x 400G (CFP2-DCO) line interfaces. AMX3200 is an upgrade with other types of interface sleds in the future, which enables smooth migration during capacity expansion.
  • Complies with OIF400ZR, OpenZR+, and OpenROADM industry standards
  • Supports 400G, 300G, 200G, and 100G optical line rates over modulation formats DP-16QAM, DP-8QAM, DP-QPSK, and dQPDK
  • 4 × 100G/200/300/400G discrete, pluggable network ports up to 16 × 100 GbE/OTU4 (QSFP28)
  • Modular 1RU sled design
  • Maximum 1.6 Tbps capacity per sled
  • Supports in-band management
  • Supports DCI, metro networks
  • Supports gearbox, re-timer/crosspoint/2:1 hitless mux

Technical Specifications

Muxponder Ports16 x QSFP28 ports, each port supports 1 x 40/100 GbE 2 x sleds for CFP2-DCO modules, supports 100G/200G/300G/400G
Switching Capacity3.2 Tbps full duplex
ProcessorIntel® Atom® C Series C3508
SPI Flash16MB x 2
Memory8GB DDR4 SO-DIMM, support up to 16GB
Storage128GB m.2 SSD
TPMTPM 2.0
PTPIEEE 1588v2, timings up to Class C and provides a PPS output
AMX3200 - 3.2T Coherent Transponder and Muxponder Datasheet

-->
