AIS1600-64O - 64 OSFP1600 Port 1.6T AI Switch
Edgecore
AIS1600-64O

AIS1600-64O - 64 OSFP1600 Port 1.6T AI Switch

Manufacturer: Edgecore

Datasheet: AIS1600-64O

Delivers to:

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

The AIS1600-64O is engineered to break bandwidth bottlenecks in hyperscale AI and ML clusters. Incorporating the groundbreaking Broadcom Tomahawk® 6 (BCM78914) silicon, it delivers an industry-leading 102.4 Tbps switching capacity with 512 x 200G PAM4 SerDes technology.

Designed for sub-microsecond latency and massive scalability, the AIS1600-64O enables the largest flat 2-tier networking topologies, significantly reducing Job Completion Time (JCT) for complex AI training models.

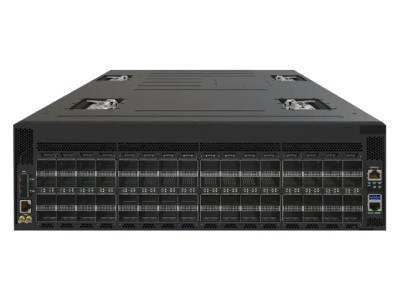

AIS1600-64O - 64 OSFP1600 Port 1.6T AI Switch
https://www.epsglobal.com/getmetafile/823b71ec-dfe8-43fd-82fb-eb13404a0035/AIS1600-64O?maxsidesize=400
The Edgecore AIS1600-64O is a 64-port 1.6T AI switch powered by Broadcom Tomahawk 6. Delivering 102.4 Tbps capacity and sub-microsecond latency, it eliminates bandwidth bottlenecks for next-gen hyperscale AI/ML clusters.
AIS1600-64O
New
AIS1600-64O
0.00
Edgecore
https://www.epsglobal.com/getmetafile/10a48348-92a3-4d28-8c95-bfba77fc5c82

Features & Benefits

  • Cognitive/Adaptive Routing with Dynamic and Global Load Balancing
  • Flexport Breakout to 800G, 400G, 200G, and 100G
  • Highest Radix with Up to 512 Logical Ports
  • Hot-Swappable 7+1 Fan Modules and Load-Sharing PSUs
  • ONIE Pre-Loaded for Open Network OS Installation
  • SyncE and PTPv2 Precision Timing Support
  • SRv6 Support Including Micro SID and Generalized SID
  • Full VxLAN Virtualization Support
  • Hardware-Based Link Failover for Maximum Resiliency
  • Integrated E-Fuses for Transceiver and Component Protection

Technical Specifications

Switching Capacity102.4 Tbps
Ports64 x OSFP1600 (1.6T)
ChipsetBroadcom Tomahawk 6 BCM78914
Process Node3nm Monolithic
SerDes512 x 200G PAM4
LatencySub-microsecond (<1μs)
Packet Buffer267MB Unified Fully-Shared
Form Factor3 RU
CPUIntel Xeon D-1713NTE (Ice Lake-D)
Power Supply2700W AC or 3200W DC
