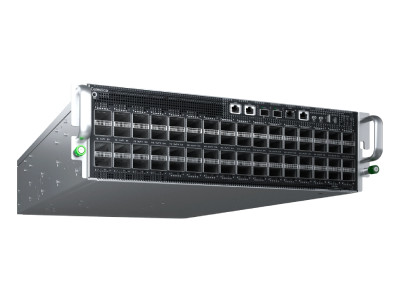

DS6000 - 3U 64-port 1.6TbE  Data Center Switch
Celestica
DS6000

DS6000 - 3U 64-port 1.6TbE Data Center Switch

Manufacturer: Celestica

Datasheet: DS6000

Delivers to:

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

Celestica’s 1.6TbE Networking Switches are purpose-built to support AI backend networks for scale up and scale out networking. DS6000 simplifies AI fabric design, providing an efficient transport for AI traffic, and meets the scaling needs for the modern AI data center.

DS6000 is a 64-port 1.6TbE switch in a 3U form factor, targeted at 19-inch racks, that provides 102.4Tbps bandwidth, transforming AI connectivity for the future with unprecedented speed and agility.

DS6000 - 3U 64-port 1.6TbE Data Center Switch
https://www.epsglobal.com/getmetafile/1c2cac18-7aaf-4247-8bdf-ab77fe27bc19/ds6000?maxsidesize=400
Celestica’s 1.6TbE Networking Switches are purpose-built to support AI backend networks for scale up and scale out networking. DS6000 simplifies AI fabric design, providing an efficient transport for AI traffic, and meets the scaling needs for the modern AI data center.
DS6000
New
DS6000
0.00
Celestica
https://www.epsglobal.com/getmetafile/b3898f5e-2355-4c7e-94c1-0c2c68a95988

Features & Benefits

  • SONiC support
  • Open Network Install Environment (ONIE)
  • IEEE1588 1-step and 2-step time stamping
  • Transparent and boundary clock mode SyncE clock recovery
  • External timing interfaces (1xPPS, 1x10Mhz, 1xTOD)
  • RunBMC support with Open BMC
  • Serial over LAN (SOL) enabled
  • Remote BIOS / firmware online upgrading
  • Dual 128MB Flash for dual boot
  • 1x USB 3.0 Type A and 1x USB-C console

Technical Specifications

Switching Capability102.4Tbps IO Bandwidth
Switch SiliconBroadcom Tomahawk® 6
CPUIntel® Xeon-D x86 CPU, 4C / 8C / 10C
MemoryUp to 64GB DDR4, 512GB M.2 SSD
Data Interfaces64 ports 1.6TbE (OSFP224)
Management Interfaces2 ports 50GbE (SFP56), RJ45 console, OOB GbE
Speed Support50GbE / 100GbE / 200GbE / 400GbE / 800GbE with breakouts
Form Factor3U rack mount
Power2+2 hot swappable AC / DC PSUs
Cooling4+1 field replaceable fans (dual-rotor, 9+1 redundancy)
-->

Manufacturer

Celestica

Celestica is a leading provider of high-performance networking switches and enterprise access solutions, designed to meet the evolving needs of modern data centers, cloud computing environments, and enterprise networks.
