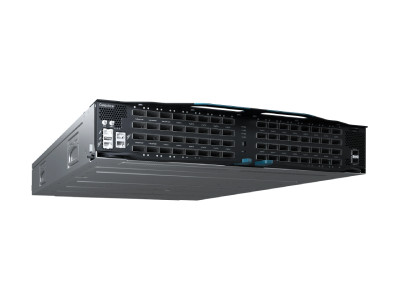

DS6001 - 2­­OU 64-port 1.6TbE  Data Center Switch
Celestica
DS6001

DS6001 - 2­­OU 64-port 1.6TbE Data Center Switch

Manufacturer: Celestica

Datasheet: DS6001

Delivers to:

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

Celestica’s 1.6TbE Networking Switches are purpose-built to support AI backend networks for scale up and scale out networking. DS6001 simplifies AI fabric design, providing an efficient transport for AI traffic, and meets the scaling needs for the modern AI data center.

DS6001 is a hybrid-cooled, 64-port 1.6TbE switch in a 2OU ORv3 form factor that provides 102.4Tbps bandwidth, transforming AI connectivity for the future with unprecedented speed and agility.

DS6001 - 2­­OU 64-port 1.6TbE Data Center Switch
https://www.epsglobal.com/getmetafile/c2b9014e-3c5a-49a5-bc09-51420a389a2e/DS6001?maxsidesize=400
Celestica’s 1.6TbE Networking Switches are purpose-built to support AI backend networks for scale up and scale out networking. DS6000 simplifies AI fabric design, providing an efficient transport for AI traffic, and meets the scaling needs for the modern AI data center.
DS6001
New
DS6001
0.00
Celestica
https://www.epsglobal.com/getmetafile/b3898f5e-2355-4c7e-94c1-0c2c68a95988

Features & Benefits

  • 20U rack mount
  • 2 ports 50GbE (SFP56) management ports
  • RJ45 console and OOB GbE management ports
  • 1x USB 3.0 Type A and 1x USB-C console
  • 1x PPS, 1x 10Mhz and 1x TOD timing interfaces
  • 64 ports 1.6TbE (OSFP224)
  • 50GbE / 100GbE / 200GbE / 400GbE / 800GbE capable with breakouts
  • Broadcom TH6 switch chipset
  • 102.4Tbps non-blocking switching capacity
  • Hybrid cooling technology

Technical Specifications

Interfaces64 ports 1.6TbE (OSFP224), 2 ports 50GbE (SFP56) management ports, RJ45 console and OOB GbE management ports, 1x USB 3.0 Type A and 1x USB-C console, 1x PPS, 1x 10Mhz, and 1x TOD timing interfaces
Breakout Speeds50GbE / 100GbE / 200GbE / 400GbE / 800GbE capable with breakouts
Switching Capability102.4Tbps IO Bandwidth
Switch SiliconBroadcom Tomahawk 6
CPUIntel Xeon-D x86 CPU, 4C / 8C / 10C
MemoryUp to 64GB DDR4, 512GB M.2 SSD
SoftwareSONiC support, Open Network Install Environment (ONIE)
TimingIEEE1588 1-step and 2-step time stamping, Transparent and boundary clock mode, SyncE clock recovery
-->
