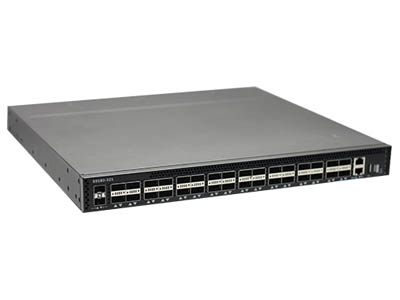

S9180-32X 32 × 100GE QSFP28 & 2 × 10GE SFP+ Ports

S9180-32X 32 × 100GE QSFP28 & 2 × 10GE SFP+ Ports

Manufacturer: ufiSpace

Datasheet: S9180-32X

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorised Distributors
Authorized Distributor
Stock Availability
Bulk Discounts
Volume Discounts
Technical Support
Includes Warranty

Product Detail

In a compact 1RU form factor, the S9180-32X innovative architecture supports up to 32 x 100GE QSFP28 and 2 x 10GE SFP+ connections forming the foundation for extensive data center-ready features including low-latency and high-density ports.

The S9180-32X provides all the power needed to simplify data center network infrastructures, making scale-out easy and thus giving data centers unmatched capacity to meet whatever bandwidth demands the future may bring.

Flexible, reliable, powerful maximize your return on investment with the next-generation S9180-32X.

S9180-32X 32 × 100GE QSFP28 & 2 × 10GE SFP+ Ports
The S9180-32X offers a compact 1RU form factor with an innovative architecture supporting 32 x 100GE QSFP28 and 2 x 10GE SFP+ connections. It features low-latency, high-density ports and unmatched data center capacity.

Features & Benefits

  • Compact full featured modular 10/100GE data center switch
  • 1 x RJ45 console/management port with RS232 signaling
  • 1 x 10/100/1000 Base-T Ethernet for Out-of-Band management
  • 1 x USB 2.0 Type-A port

Technical Specifications

ASICBarefoot Tofino BFN-T10-032D
Chassis1 RU, 440w x 44h x 428.8d mm (17.32" x 1.73" x 16.88") Weight : 8.7 kg (19.18 lb)
FAN TraysTwo hot swappable power supplies with integrated fans and trays
MemoryDDR4 16GB DDR4 32GB
Non-Operating Spec.Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 5% to 95% (RH), non-condensing
Operating Spec.0°C to 45°C (32°F to 113°F) Operating humidity: 10% to 90% (RH), non-condensing
Power supplyAC input: 100V-240V, 60/50Hz DC input: 240V, 3.5A (240Vdc China only) Typical/Max power draw: 350/415 Watts
ProcessorIntel® Broadwell D-1527 2.2GHz 4 Cores Intel® Broadwell D-1548 2.0GHz 8 Cores
StorageM.2 SSD 128GB
