home products Switches Data Center Switches 400G Data Center Switches DCS511 32x 400G QSFP56-DD Data Center Switch
DCS511 32x 400G QSFP56-DD Data Center Switch
Edgecore
DCS511

DCS511 32x 400G QSFP56-DD Data Center Switch

Manufacturer: Edgecore

Datasheet: DCS511

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

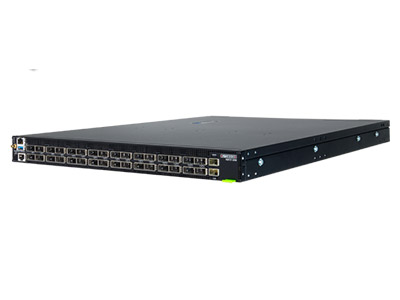

The Edgecore DCS511 (AS9737-32DB) is an open network spine switch designed for high-performance data centers. It can be deployed as a spine switch supporting 100/400 GbE spine-to-spine or spine-to-leaf interconnects. This Open Network switch comes pre-loaded with the Open Network Install Environment (ONIE), which facilitates the installation of compatible Network Operating System (NOS) software. Supported options include the open-source Open Network Linux as well as various commercial NOS offerings, providing flexibility and choice for network administrators.

DCS511 32x 400G QSFP56-DD Data Center Switch
https://www.epsglobal.com/getmetafile/5e8f4278-96f5-4b41-827a-555949d9a564/DCS511?maxsidesize=400
The Edgecore DCS511 (AS9737-32DB) is an open network spine switch designed for high-performance data centers.
DCS511
New
DCS511
0.00
Edgecore
https://www.epsglobal.com/getmetafile/10a48348-92a3-4d28-8c95-bfba77fc5c82

Features & Benefits

  • Next Gen I²C Design
  • QSFP56-DD switch ports, each supporting 1 x 400G QSFP56-DD, 1 x 100G QSFP28, 1 x 40G QSFP+, or via breakout cables 2 x 200G (2 x 4 lanes 50G PAM4), 4 x 100G (4 x 2 lanes 50G PAM4), 2 x 50G (2 x 2 lanes 25G NRZ), 4 x 25G NRZ, or 4 x 10G NRZ
  • Supports hot/cold aisles with front-to-back or back-to-front airflow SKUs
  • All ports on front; PSUs and fans accessible from rear
  • Hot-swappable, load-sharing, redundant 1500W AC or 48VDC PSUs
  • Higher optical segment support
  • Supports 400G ZR/Open ZR+ coherent transceivers in the upper 16 QSFP56-DD ports
  • Contains e-fuses to protect individual transceivers
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings
  • Supports VXLAN

Technical Specifications

Switch Ports32 x QSFP56-DD 400GbE
Switch SiliconBCM56993 Tomahawk 4
ProcessorIntel® Xeon® Quad-core 2.2GHz
BMCAST2600 with OpenBMC
SPI Flash512MB x 2
Memory32GB DDR4 SO-DIMM with ECC
Storage128GB m.2 SATA SSD with PLP support
TPMTPM2.0
Rack1 RU form factor
Timing and Sync1PPS Port, SyncE, IEEE 1588v2 PTP
FansHot-swappable 5 + 1 redundant fans
Storage Temperature-40°C to 70°C
Operating Temperature0° C ~ 45° C (Front-to-Back) 0° C ~ 30° C (Back-to-Front)
Power Draw1370 W (Maximum)

Resources

DCS511 32x 400G QSFP56-DD Data Center Switch Datasheet
DCS511 Datasheet

DCS511 Datasheet

-->

Manufacturer

Edgecore

Edgecore Networks Corporation is a wholly-owned subsidiary of Accton Technology Corporation, the leading network ODM.  Edgecore Networks delivers wired and wireless networking products and solutions through channel partners and system integrators worldwide for data center, service provider, enterprise, and SMB customers.
