Product Detail

The ECS4150-28P is a PoE switch which can provide up to 30 Watts to Power Devices such as Wireless Access Point, VoIP Phone, Surveillance camera, IoT devices etc over Cat 5 UTP cable eliminate the need for individual power source. The ECS4150-28P is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.

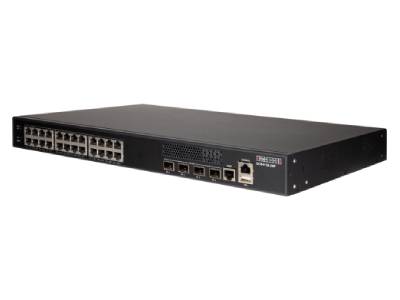

ECS4150-28P - L2+/L3 Lite Gigabit Ethernet Switch
https://www.epsglobal.com/getmetafile/02c95ae5-5d1c-4c0a-857c-d9c86154c67c/ECS4150-28P?maxsidesize=400
The ECS4150-28P is a PoE switch which can provide up to 30 Watts to Power Devices such as Wireless Access Point, VoIP Phone, Surveillance camera, IoT devices etc over Cat 5 UTP cable eliminate the need for individual power source.
ECS4150-28P
New
ECS4150-28P
0.00
Edgecore
https://www.epsglobal.com/getmetafile/10a48348-92a3-4d28-8c95-bfba77fc5c82

Features & Benefits

Technical Specifications

RJ-45 10/100/1000BASE-T Ports24
SFP+ 10 Gigabit Uplink Ports4
Switching Capacity128 Gbps
Forwarding Rate95 Mpps
NAND Flash Memory256 MB
DRAM1 GB
MAC Address Table16 K
Max System Power Consumption450 Watts
PoE Power Budget370 W
Acoustic Noise (at 25°C)< 40 dBA
Dimension (W x D x H)44 x 28 x 4.4 cm
Weight4.75 kg (10.47 lb)
Operating Temperature-5 ~ 45°C
Operating Humidity5% to 95% (non-condensing)
MTBF (at 25°C)449,388 hrs
-->
