WaveShapers

WaveShaper-1000A
WaveShaper® 1000A Programmable Optical Filter
WaveShaper-1000A

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
Product Highlights :
  • Based on High Resolution Liquid Crystal on Silicon (LCoS) technology
  • Arbitrary Filter Shape
  • Control of Filter Dispersion
  • 35 dB Attenuation Control
  • Filter bandwidth variable from 10 GHz to 9 THz, depending on model
  • Integrated Webserver allows platform independent control
Application :
  • Optical Component Testing
  • Transceiver Testing
  • DWDM System Testing
  • Laser Pulse Compression
  • Optical/Microwave Filtering
WaveShaper® 1000A Programmable Optical Filter
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/finisar/roadm-fws-optoelectronic/WaveShaper-1000A.jpg?ext=.jpg&maxsidesize=400
<p>The WaveShaper 1000A Programmable Optical Filter supports arbitrary user-generated channel and filter shapes.</p>
WaveShaper-1000A
WaveShaper-1000A
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar

Quantity breaks available. View Pricing Table

Pricing Table

Product Highlights :
  • Operating Frequency Range: 196.2 THz to 204.2 THz (1468.0 nm to 1528.0 nm)
  • Frequency Setting Resolution: ±1 GHz (±8 pm)
  • Insertion Loss: < 7 dB
  • Max Total Input Optical Power: +27 dBm
  • Filter Bandwidth: 20 GHz - full range (0.16 nm - full range)
  • Filter Shape: Arbitrary
WaveShaper 1000A Programmable Optical Filter, S-Band, Benchtop, FC-APC Connectors
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/finisar/roadm-fws-optoelectronic/WaveShaper-1000A.jpg?ext=.jpg&maxsidesize=400
WaveShaper 1000A/S
WaveShaper 1000A/S
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar

Quantity breaks available. View Pricing Table

Pricing Table

Product Highlights :
  • Operating Frequency Range: 182.8 THz to 191.316 THz (1567.0 nm to 1640.0 nm)
  • Frequency Setting Resolution: ±1 GHz (±8 pm)
  • Insertion Loss: < 7 dB
  • Max Total Input Optical Power: +27 dBm
  • Filter Bandwidth: 20 GHz - full range (0.16 nm - full range)
  • Filter Shape: Arbitrary
WaveShaper 1000A Programmable Optical Filter, Extended L-Band, Benchtop, FC-APC Connectors
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/finisar/roadm-fws-optoelectronic/WaveShaper-1000A.jpg?ext=.jpg&maxsidesize=400
WaveShaper 1000A/XL
WaveShaper 1000A/XL
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
Product Highlights :
  • Arbitrarily programmable shape of attenuation and phase
  • Instrument versions available for the 1 µm and in the 1.55 µm band
  • Resolution bandwidth 0.1 nm
  • Group delay adjustable
  • Large attenuation range
  • Single Polarization Operation
  • Fully fiberized with PM pigtails on input and output
  • USB and Ethernet control interface
  • Benchtop and Modular versions available
  • No moving parts; based on LCoS technology
Application :
  • Material Processing
  • Short Pulse Laser Research
  • Medical (Dermatology/Ophthalmology)
  • Microscopy
  • Spectroscopy
  • Coherent Quantum Control
  • Optical Communications
WaveShaper 1000A/SP Programmable Single Polarization Filter, available for 1 µm and 1.55 µm signals
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/finisar/roadm-fws-optoelectronic/WaveShaper-1000A.jpg?ext=.jpg&maxsidesize=400
<p>The WaveShaper 1000A/SP is a Polarization Maintaining (PM) programmable filter which provides full control of the amplitude and phase spectra either across the entire C-band or in the 1µm window.</p>
WaveShaper 1000A/SP
WaveShaper 1000A/SP
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar

Quantity breaks available. View Pricing Table

Pricing Table

Product Highlights :
  • Coverage of full C+L band
  • Arbitrary control of attenuation and phase
  • Filter update rate up to 30 Hz
  • High resolution: bandwidth (FWHM) down to 14 GHz (4000B)
  • Power splitting (4000B)
  • Webserver included
Application :
  • DWDM System Test
  • Network Simulation
  • Transceiver test
  • Pulse shaping
  • Optical comb generation
  • Quantum optics

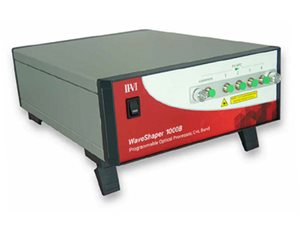

WaveShaper 1000B Programmable Optical Filter
https://www.epsglobal.com/getmetafile/710d8233-7243-459c-b6d8-15fcb38e89b4/waveshaper-1000b?maxsidesize=400
<p>The WaveShaper 1000B Programmable Optical Filter and the 4000B Programmable Optical Processor allow arbitrary optical filtering of attenuation and phase across the entire C+L band. The 4000B allows wavelength selective optical switching using the 1 x 4 optical port configuration and in addition it provides a high resolution mode of operation in which the optical signal passes twice through the grating based monochromator. This high resolution mode ensures narrow channel shapes in combination with steep filter slopes of more than 700 dB/nm. This instrument family is broadly used in Research, Development and Manufacturing applications.</p>
1000B/X
1000B/X
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
WaveShaper-100A
WaveShaper® 100A Tunable Optical Filter
WaveShaper-100A

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
Product Highlights :
  • Variable-bandwidth tunable optical filter
  • No moving parts
  • Centre frequency settable in 1 GHz steps
  • Filter bandwidth variable from 10 GHz to 1000 GHz
  • Built-in Flat-top and Gaussian filter shapes
  • Integrated Webserver allows platform independent control
Application :
  • Optical Component Testing
  • Transceiver Testing
  • DWDM System Testing
  • Channel Selection
WaveShaper® 100A Tunable Optical Filter
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/finisar/roadm-fws-optoelectronic/WaveShaper-100A.jpg?ext=.jpg&maxsidesize=400
The WaveShaper 100A is a variable-bandwidth tunable optical filter which is optimized for use in R&D as well as in production test applications where the precise control over both the bandwidth and the center frequency ensures support for current test requirements as well as for next generation FlexgridTM-based networks and subsystems.
WaveShaper-100A
WaveShaper-100A
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
WaveAnalyzer-100S
WaveAnalyzer 100S Compact Optical Spectrum Analyzer
WaveAnalyzer-100S

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
Product Highlights :
  • Full C-band coverage
  • Resolution bandwidth: 1.8 GHz (about 14 pm)
  • Compact: 108 x 163 x 26 mm3
  • Fast: 2 updates per second
Application :
  • Spectral analysis in system test
  • Gain equalization
  • Optical Signal to Noise Ratio (OSNR) measurement
  • WDM analysis
WaveAnalyzer 100S Compact Optical Spectrum Analyzer
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/finisar/roadm-fws-optoelectronic/WaveAnalyzer-100S.jpg?ext=.jpg&maxsidesize=400
The WaveAnalyzer 100S Compact Optical Spectrum Analyzer is a small, lightweight instrument which has been designed for spectral measurements on advanced optical communication systems in R&D and manufacturing.
WaveAnalyzer-100S
WaveAnalyzer-100S
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar

Showing 17 of 17 results

Showing 11 - 17 of 17 results
